Cool Cab Kit FOR POLARIS RZR 2014-2025
Cool Cab Kit FOR POLARIS RZR 2014-2025
Cool Cab Kit FOR POLARIS RZR 2014-2025
Cool Cab Kit FOR POLARIS RZR 2014-2025

Cool Cab Kit FOR POLARIS RZR 2014-2025

Wolf Snout

  • Save $ 0

Works on all 2014-2025 RZR 900-1000 | Including all XP Turbo, Turbo S and Dynamix models. See dropdown for applications.

Description

Check out the installation videos for both

cooler cab kits in the description below:

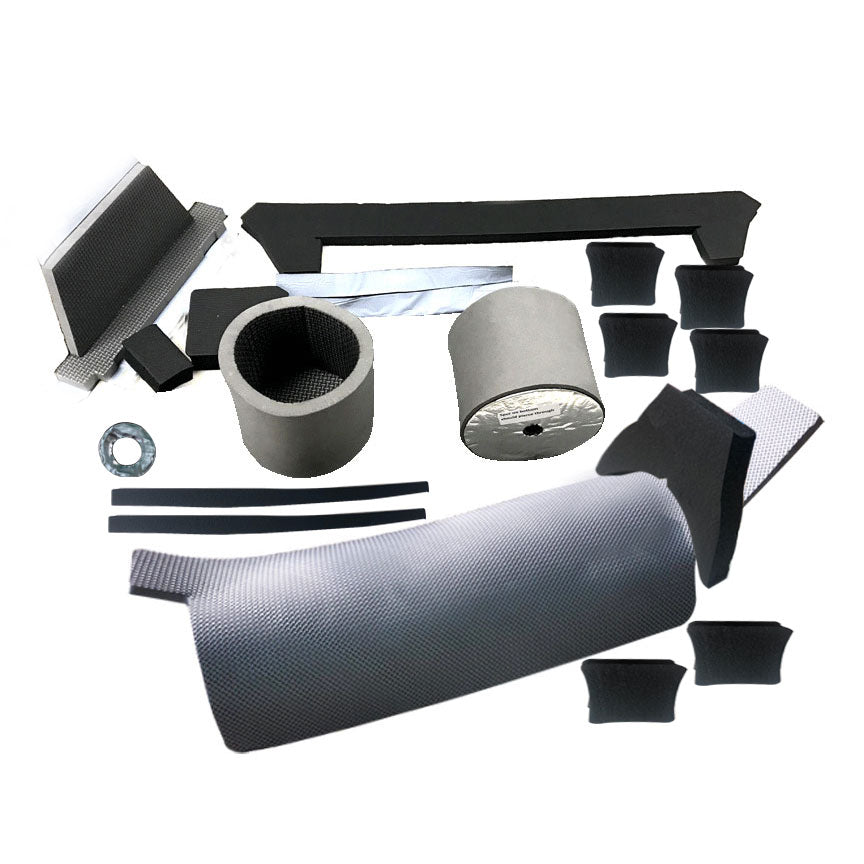

Wolfsnout Cooler cab kit for RZR XP 900, 1000XP , XPT  XP4 1000 and 1000 S. We all feel the heat. Sometimes its unbearable in the summer. Nice to have in the winter. This kit greatly reduces cab heat by insulating, deflecting and sealing hot air entry. This kit comes with what you need to keep the hot air from blowing in from under the dash as well as deflecting hot air from the radiator at the drive line cover. It also insulates the drive line and cup holders. All inserts can be removed for winter riding to turn the heat back on.

For directions on installation check out the diagram (including upgraded parts) and video below

Installation Notes:

This replaces the peel and stick tape in the video.

  1. Bend the metal wire holding the seat belt sensor wire, down about ½ inch.  If your seat belt safety wire is still in use, you may need to use a pair of scissors and make a small slice in the bottom of the cap to accommodate the wire,
  2. Install from the back side, fit the slotted section over the throttle cable
  3. Once the bottom is pushed up against the frame, using two fingers, push the tabs on the ends, to the center and up.  Getting them to the top of the frame.
  4. Making sure it is seated into the opening evenly, and on top of the throttle cable and the seat belt sensor clip (that was bent downward in step 1.)

You will need to use this video to get the rest.  There are also two 1 ½” x 1 ½” bell shaped pieces in the kit.  They go in the openings just under the square foam pieces seen on the video where the frame meets the roll cage.

Tip:  after the drive line insulator is installed as in the picture run a bead of silicone down the driver side edge to better seal.  This will make a difference and the part will still be easy to remove.    Gorilla tape is a great choice to seal the cab seam that runs left to right on the front of the cab.

Installation Instruction Video

https://youtu.be/mdXzK7M1Jdg?si=zhLCn-YO6ZL2crx1

ecs 3-5-26
