CA Technologies USA Maverick R Big Knuckle Kit

Kit includes:

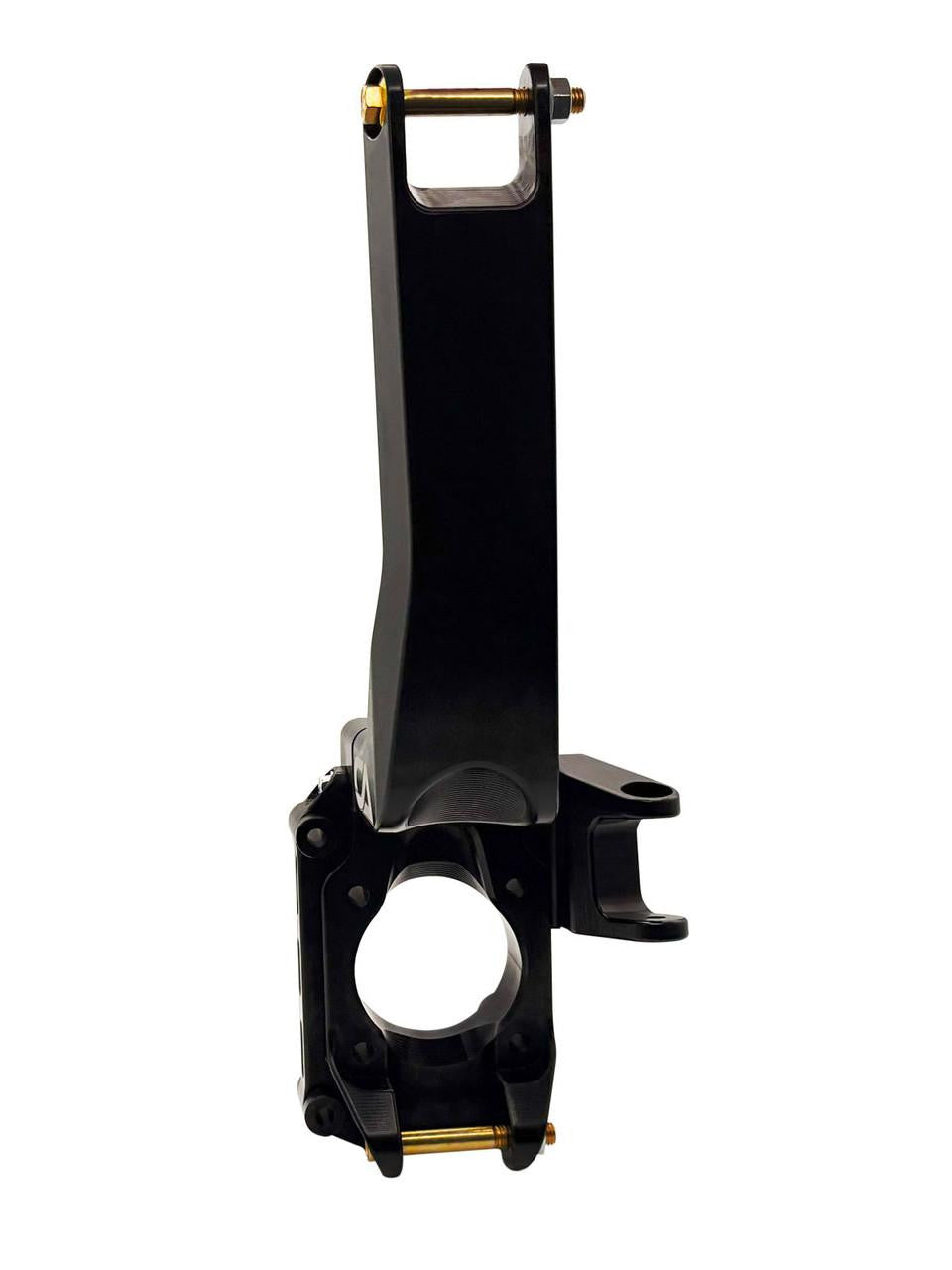

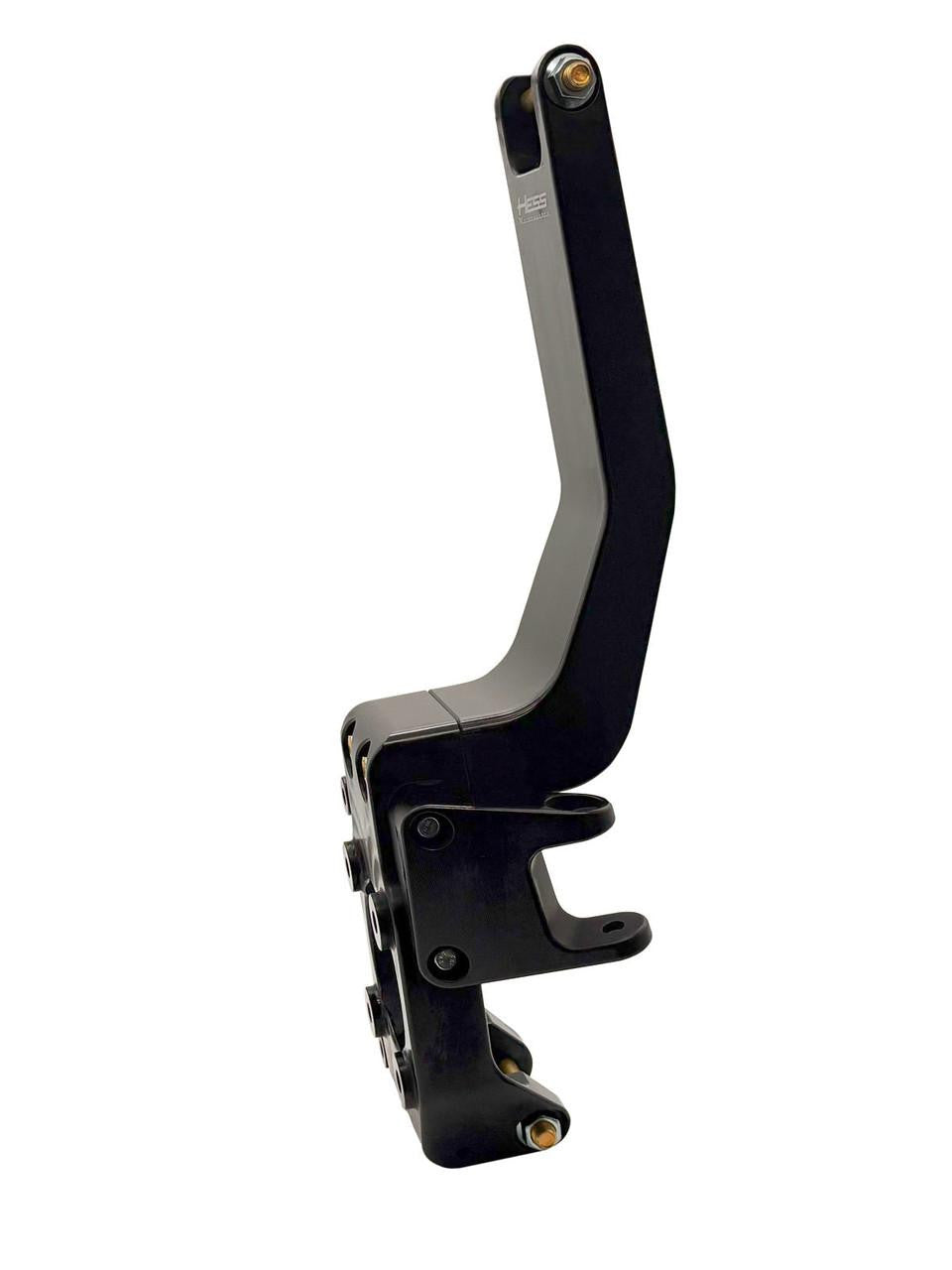

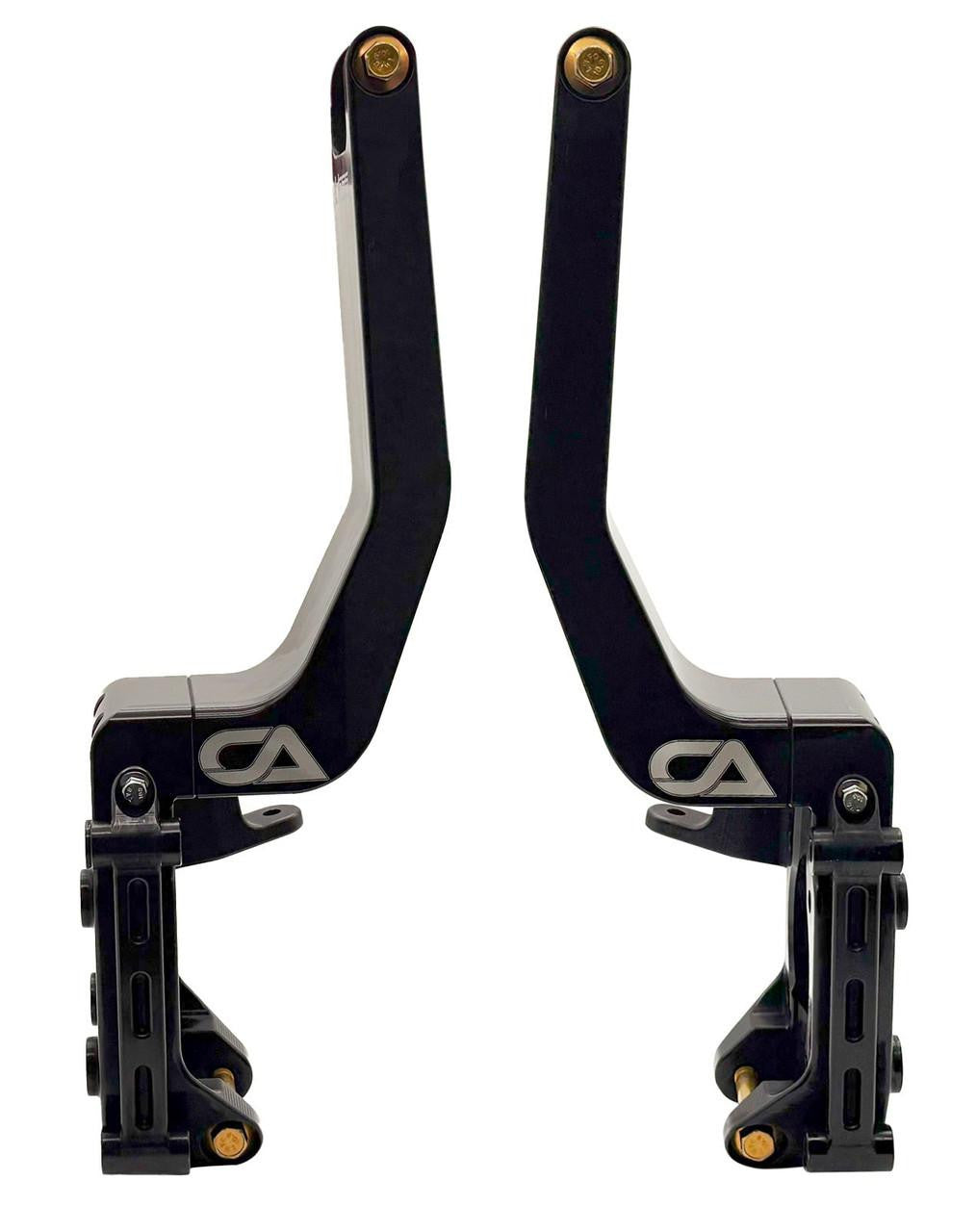

7075 Billet Knuckle
Upper  Control Arms
Lower  Control Arms
FK wide series uniballs
304 Stainless Spacers throughout
Bushings and Stainless Inserts

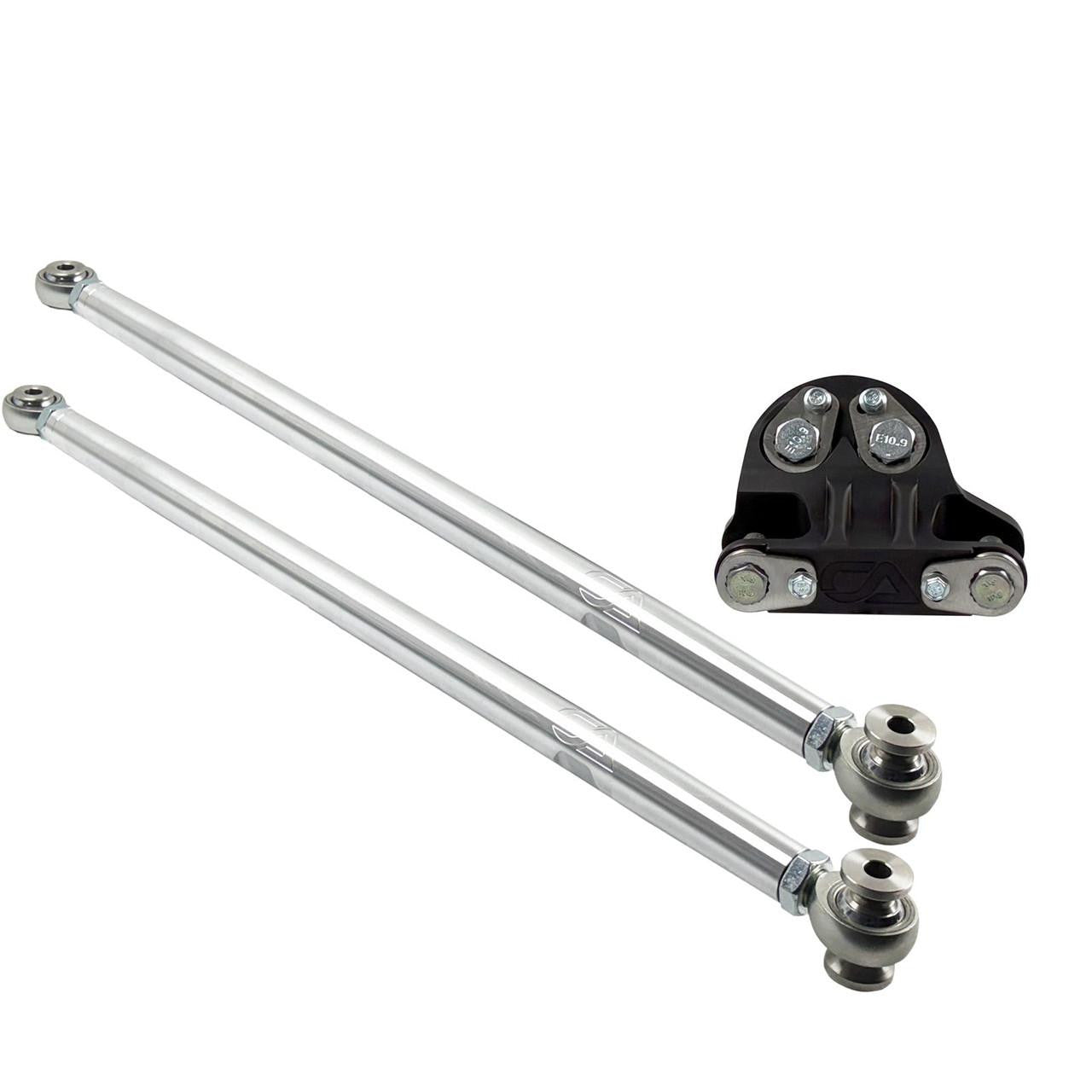

7075 Billet Tie Rod with 3/4 heims
Steering Flag for Rack
All Associated Hardware

The Maverick R Race Knuckle Kit is engineered for precision and performance, combining innovative design with racing-grade components. Featuring an unequal length control arm setup, it maintains the advantages of a tall knuckle design while eliminating tire size restrictions. This kit significantly improves suspension geometry by reducing bump steer from nearly 1 degree to just 0.2 degrees of total toe change, enhancing handling stability. Additionally, it decreases scrub radius by 12% and track width by 16% compared to factory specs, optimizing cornering response. The uniball joints are vertically oriented for superior strength and durability, aligning with their intended radial load capacity rather than the less effective horizontal positioning. This thoughtful engineering ensures maximum longevity and performance on the track and trail alike.
