Denali Pro UTV Snow Plow - Honda Talon by Motoalliance

Motoalliance

  • $ 829.99

Customizations Total: $ 0.00

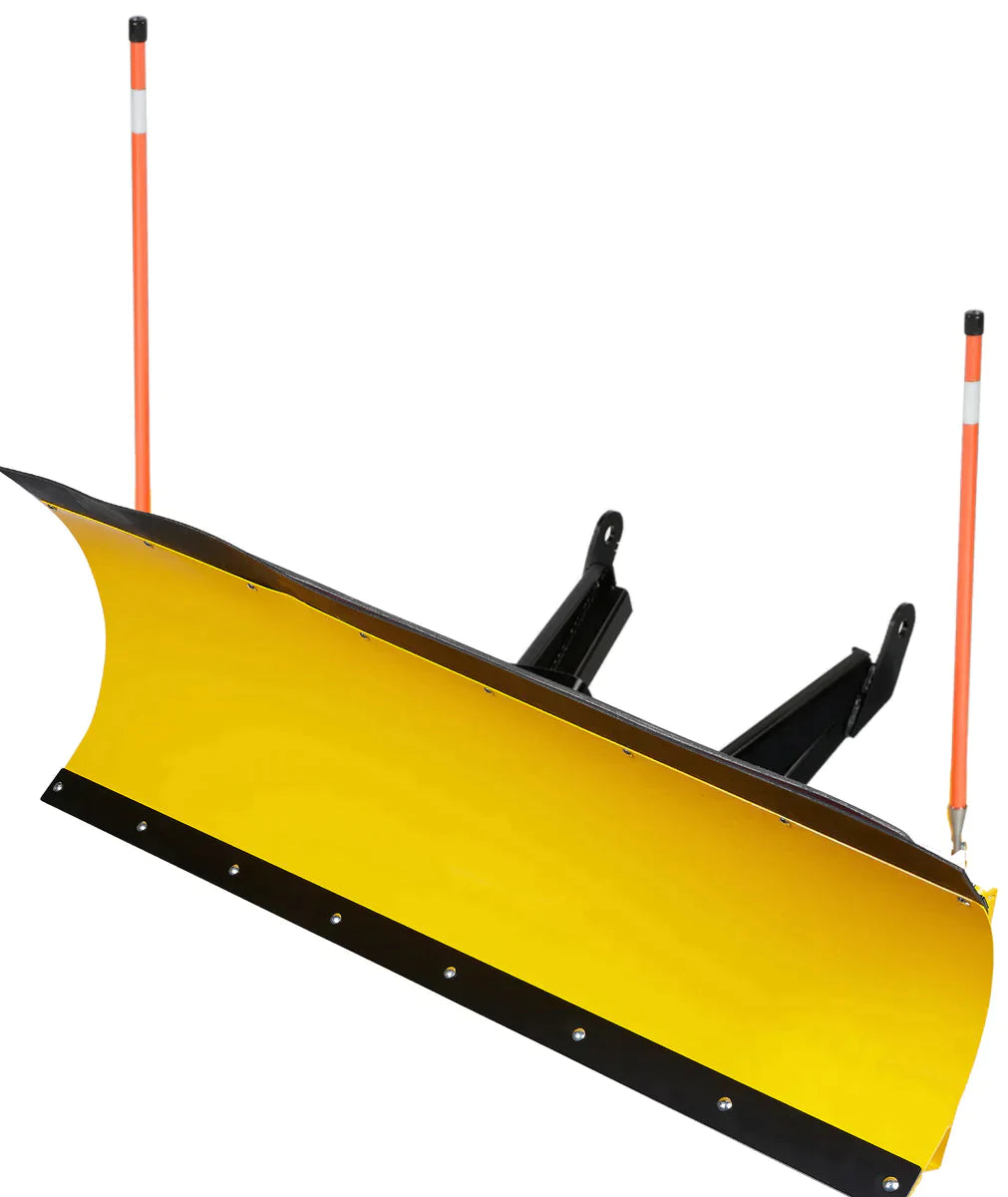

Snow doesn't stand a chance against DENALI Pro UTV Snow Plows. Designed in the USA, these heavy duty, County-style 12-gauge steel UTV plow blades make quick work of powder and wet snow. The center mounted design disperses the force of impact to the sturdiest part of the UTV / SxS, preventing damage to the front end or other vehicle parts from sudden impact. The plow kit includes a reversible wear bar, rubber flap, and skid feet to protect the blade from wear and tear. Dual-layer powder & Polyester paint coat boosts corrosion protection and UV resistance, keeping you plowing for seasons to come.

Please Note:All DENALI Snow Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, VIPER Max, or VIPER Midnight winch with an automatic brake.

Free Shipping in the lower 48!


Kit Contents:

  • UTV Snow Plow Blade - County / DOT Style
  • UTV Pushtubes
  • One (1) Reversible Wearbar
  • Rubber Flap
  • Rubber Flap Stabilizer Bar
  • Skid Feet
  • Plow Markers
  • Plow Mount (when added to order)
  • Installation Hardware and Instructions


Blade Features:

  • County-style blade (curved design) cuts wet snow & throws powder; made of 12-gauge steel
  • Impact Resistant Reinforcement System, includes leading edge stiffener and vertical stabilizer bar
  • Sand-blasted powder coat with epoxy primer & TGIC Polyester top coat for corrosion protection, UV resistance and durability
  • High strength, high yield 3/16 thick Grade 50 steel wear bar
  • Angled Blade : 16 on the low side; 23 on the high side
  • Rubber flap & stabilizer bar with rubber flap
  • Height AND angle adjustable steel skid feet
  • 3 Year Warranty
  • Designed in the USA


Pushtube Features:

  • Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength
  • Turn system allows for easy positioning of the blade in 5 different angles - 0, 12.5°, 25°
  • Simple detachment system with the pull of a pin
  • Structural tube steel cross bar for added lateral rigidity
  • Quick release pins included
  • 13.5 inches center to center for plow mount tabs
  • Extended Push Tubes are designed to be used with SxS/UTVs that have tracks


Pushtube Lift Kits:

  • Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
  • Lift Kits are for use with DENALI UTV Standard Pushtubes only (NOT Extended Pushtubes)


Optional Hydroturn Features:

  • PLEASE NOTE: Extended Pushtubes is not compatible with the Hydraulic Lift System
  • Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
  • Change the blade angle while driving; full radius turn in just 10 seconds
  • Heavy duty chrome plated ¾″ cylinder shaft
  • No modifications necessary - bolts directly to the Denali UTV Plow Push Tubes
  • Wire harness utilizes weatherproof connectors


Optional Plow Pulley Fairlead Features:

Roller

  •      Replaces the winch fairlead during the plow season
  •      For use with Steel AND Synthetic cables
  •      Curved cable groove helps eliminate flattening and breaking of cable
  •      Bolt Patterns:
  •         Standard Spool: 3″ x 4.875″
  •         Wide Spool: 3" x 6.6

Sheave

Includes puley, 1/4" clevis hook and nylon strap

Allows greater precision when raising / lowering plow blade and increases the angle of pull

Cable

12' length, 1/4" diameter

Single braid, dyneema rope with galvanized steel thimble/eyelet

MODEL LIST

MA11706T-GEN

2016-2022 Polaris General

Please Note: for use with a skid plate height of 10-12" off the ground

MA11770

2 inch Receiver Plow Mount
All machines with front 2 inch receiver already installed
JDS 1/4/2022
