RZR Turbo Transmission Stage 2 Gear Reduction 50t 3236690 / 23t Reverse Shaft 3236689

The new Turbo R gear is a 19% reduction and that is about 6% lower than the Ace gear set which is 13%.

The two and four seat model Turbo RZR models come from the factory with different High and Reverse gearing so this kit provides a different reduction for two seaters vs four seaters in High and Reverse.  This reduction is ideal for riders wanting a better crawl ratio when running 33"-35" tires.  If you have ever been in a steep rock obstacle section of trail and either slipped your belt or had to give it too much throttle to get the clutch to lock up only to have your machine surge over an obstacle forcing you to jump back on your brake pedal, this is the cure.

Approximate Low Range Reduction = 19%

Approximate High Reduction = 19%

Included in the kit:

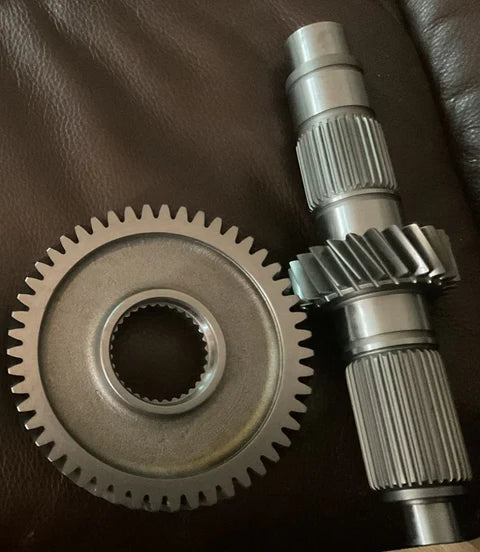

1x PN#: 3236690 Genuine Polaris 50T Stage 2 Gear
1x PN#: 3236689 Genuine Polaris 23T Reverse Gear Shaft

For higher mileage machines and added piece of mind consider replacing the bearings and seals in your transmission while you have it apart with a Sandcraft seal kit or seals and bearings. Click HERE for Seals and Bearings

We can get your RZR even Lower Geared!!!  Click here for our stage 3 19% Gears

 FITMENT:

2016-2021 RZR XP Turbo 2 Seat

2016-2021 RZR XP Turbo 4 Seat

2018-2021 RZR XP Turbo S 2 Seat

2018-2021 RZR XP Turbo S 4 Seat

2020-2023 RZR PRO XP

202-2023 RZR PRO XP 4

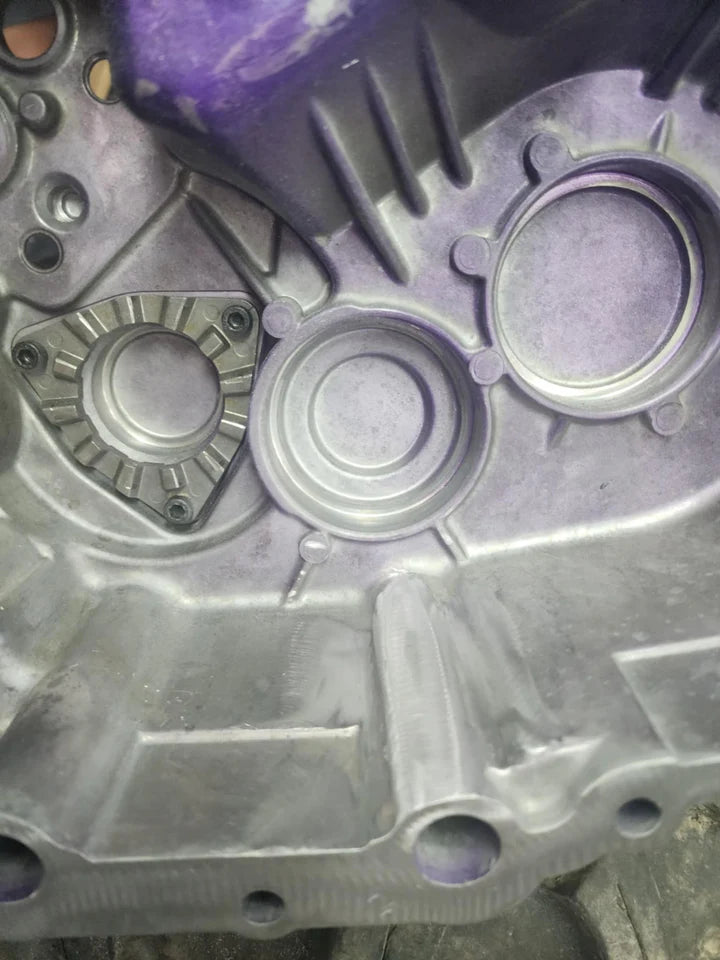

******* Be advised that to install this gear set on the RZR XP Turbo, XP Turbo S or RZR Pro XP, the transmission case may require some light grinding for clearance. See product photos to see example.
