Sandcraft Polaris RZR High Gear Bushing Support

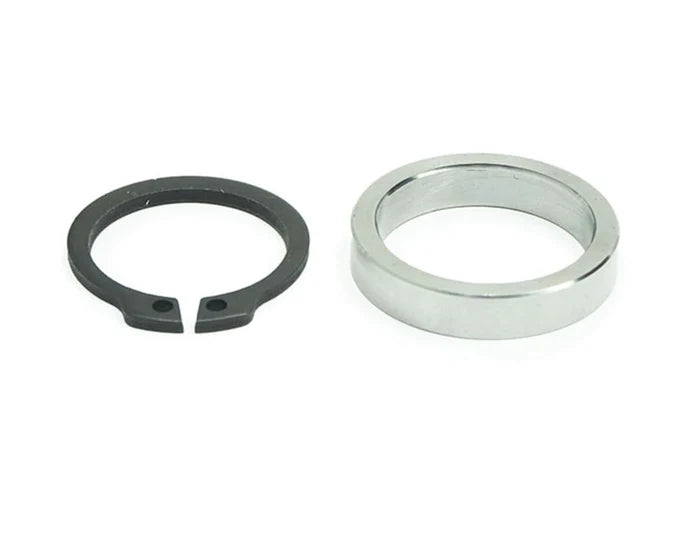

The Sandcraft High Gear bushing/spacer is an effective way to prevent losing high gear in your Polaris RZR or General. The Sandcraft High Gear Support Bushing is precision manufactured from 108 mild Steel. This critical component is designed to replace the weak factory snap ring which is a common failure point. Our support bushing utilizes the hardened thrust washer to transfer ALL of the load directly to the inner bearing race. This ensures your high gear is always where it’s supposed to be.

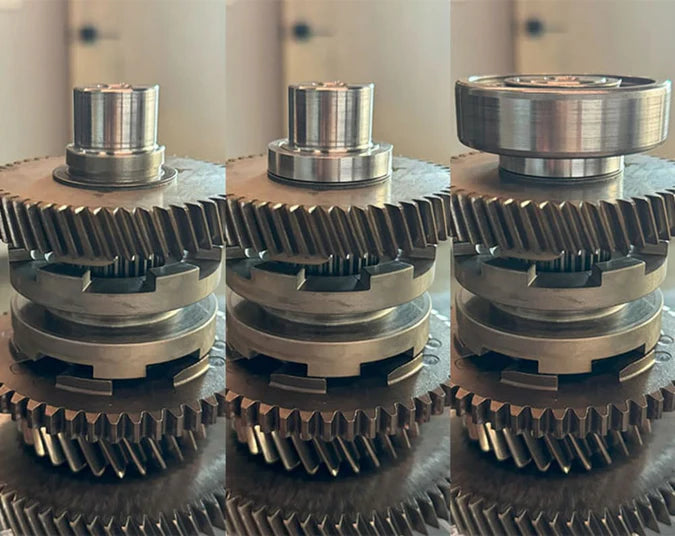

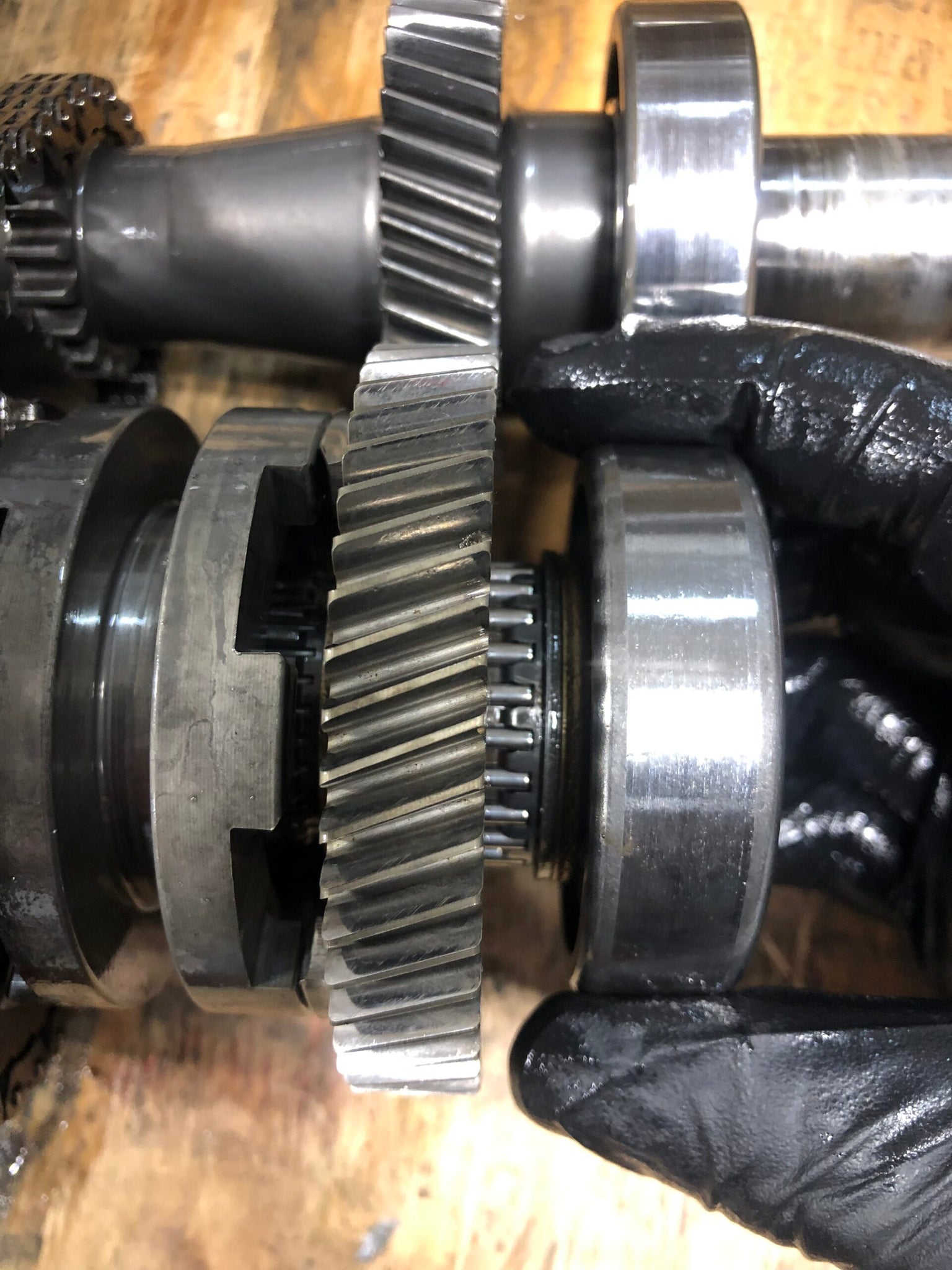

 High gear on the reverse shaft floats on a set of needle bearings and is held in place by a washer and retainer clip on each side.  If you routinely try to shift gears without stopping the RZR, or letting the RPMs fully drop to idle, the shift dog puts undo stress bouncing on the side of the high gear.  This stress can cause the retainer clip to pop out of its groove.  That allows the high gear to shift over and can no longer be engaged.  Sometimes the retainer clip breaks instead of just popping out of the groove, which can then get between the gear teeth and wreak havoc on your transmission.  The RZR High Gear Spacer replaces the washer and retainer clip on one side and takes up the gap between the high gear and the bearing.
