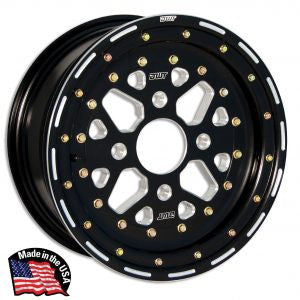

Sector 14" Wheel by DWT Racing

$ 249.00 $ 307.00

Free Shipping in the Lower 48 States



Introducing the unique new SECTOR 3 piece wheel from DWT. Made in the USA, this awesome new TRUE 3 piece wheel is fully serviceable and constructed of super strong lightweight heat treated 6061 .190 aluminum. All of our heat treatment is done in our factory, assuring a true and proper procedure. The Sector consists of two lightweight aluminum wheel halves which bolt to a stylish billet center. An air tight seal is formed by a strong rubber ring seated in a precision machined groove between each wheel half and the wheel center. Available in 12” and 14” sizes in many offsets.

Features:

• Heat Treated 6061 .190 Aluminum Spun Halves

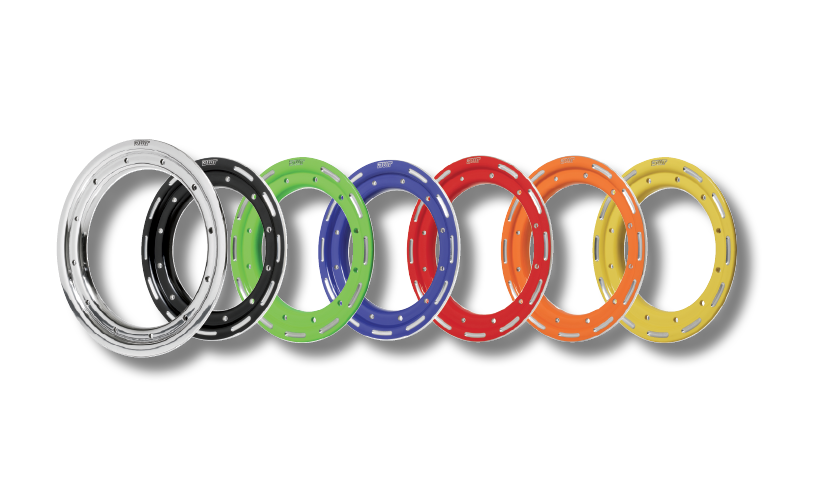

• Heat Treated 6061 .190 Bead Lock Rings
• 8mm 12.9 Class Black Zinc Finish Bead Lock Bolts
• 6mm 10.9 Class Black Zinc Finish Center Bolts
• 6061 T6 CNC Billet Aluminum Center
• Fully Serviceable Modular Bead Lock Wheel
• Matte Black Finish – NEW
• Black Zinc Finish Hardware – NEW
• Made in the U.S.A.

Sizes Available:
 12″
 14″ (14.45 lbs)
 15″ (15.10 lbs)


• Made in the U.S.A.

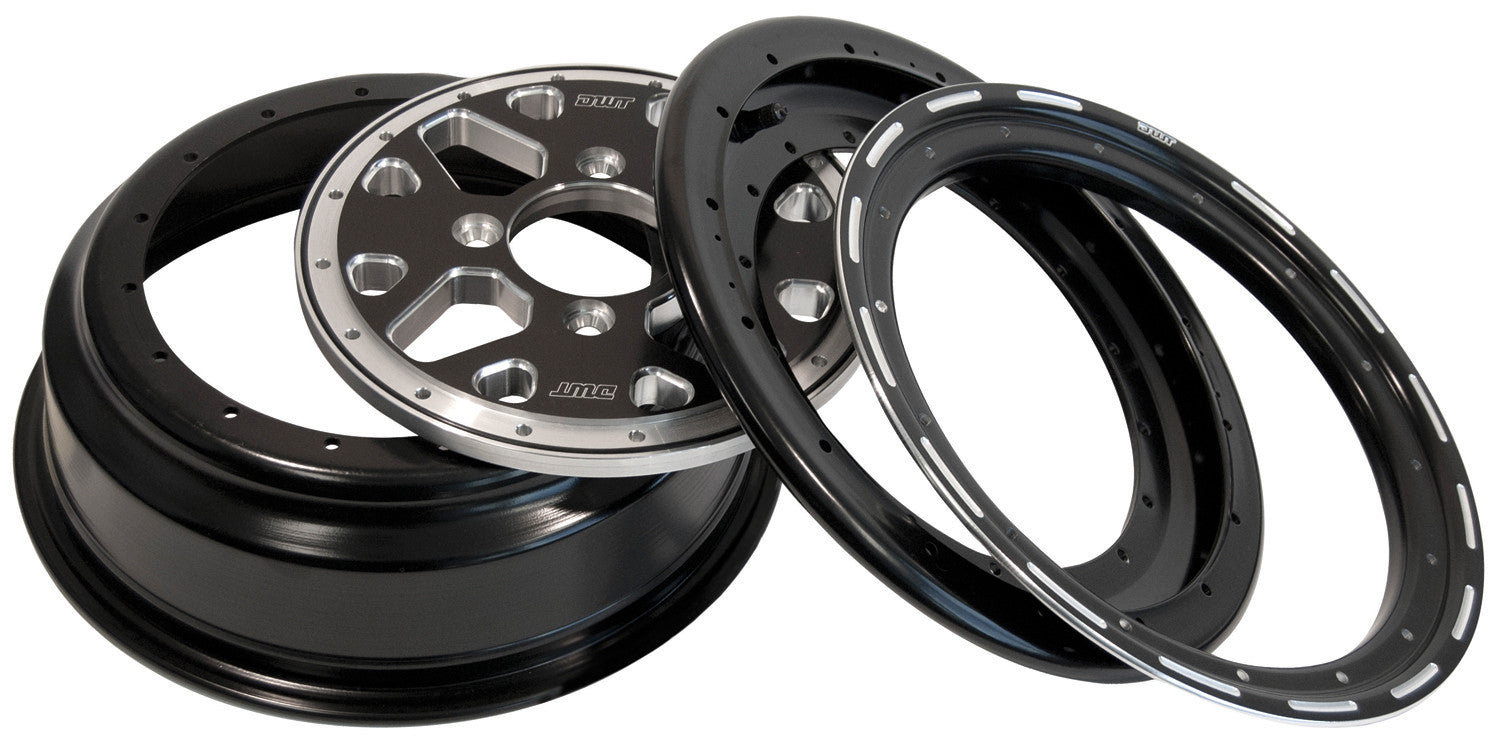

REVOLUTIONARY 3 PIECE WHEEL

Sector’s revolutionary 3 piece design allows you to change any piece of the wheel if need be. This versatile design has many options which allow you to have one wheel for different types of riding, vehicle applications or simply to replace a damaged part without scrapping the entire wheel.

It also allows easy “in the field” tire mounting. These amazing new wheels are available in DWT’s signature “super hoop strength” Rolled Lip and Bead-Lock models. Our bead-lock models employ our exclusive riveted steel nut plate system which allows for quick and easy thread fix.

Did you ever wish you could change your wheel’s offset, bolt pattern or maybe even make it into a beadlock wheel? Well, with DWT’s SECTOR WHEEL you can make it happen.

The versatile SECTOR wheel from DWT can become many different wheel configurations by swapping out any part of the wheel. Now you can get that specific wheel you need without buying a whole new setup!

BEADLOCK TORQUE SPECS:

8”-12” wheels = 5.5-7.5 FOOT lbs/65-90 INCH lbs
15”-17” wheels = 15-25 FOOT lbs/180-300 INCH lbs


DOWNLOAD the SECTOR INSTRUCTION SHEET HERE

Check out this VIDEO and POST from MUDANDGUTSOFFROAD.org
