9″ Wide Panoramic Rear View Mirror – Bolt on by Axia

9″ Wide Panoramic Rear View Mirror – Bolt on by Axia

Axia Alloys

  • $ 109.95
  • Save $ 5


Free Shipping Lower 48 States

The Axia Alloys 9” wide panoramic rear view mirror is the latest addition to our mirror line, and like it’s 17” wide big brother it offers a low distortion crystal clean view with its shatter resistant glass insert.

These mirrors are only convex in the horizontal direction so that your surroundings appear exactly where they are in relation to your vehicle. Competitors mirrors that are more drastically convex in the horizontal and vertical directions and can make objects appear much further away than they really are.

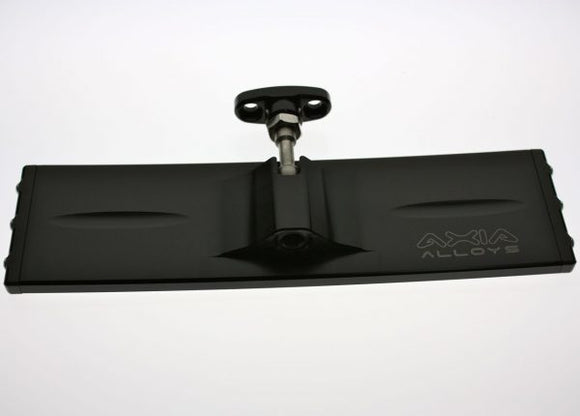

This is the bolt on version of our 9 inches wide mirror. USE THIS WHEN YOU DO NOT HAVE ROOM FOR A CLAMP MOUNT. Not supplied with the 2 mounting screws as there are many applications for this mirror. We recommend using self tapping screw in most cases.

The Axia Alloys 9 inches wide panoramic rearview mirror offers a low distortion crystal clean view with its shatter resistant glass insert.

These mirrors are only convex in the horizontal direction so that your surroundings appear exactly where they are in relation to your vehicle. Competitors mirrors that are more drastically convex in the horizontal and vertical directions can make objects appear much further away than they really are.

This mirror also offers adjustable mounting ball tension so that it can be tightened up for demanding off-road environments.

We offer a liftime warranty on all our mirrors. FREE REPLACEMENT of your mirror insert. Yes even if the little ones throw a rock at them, or the big kids try out their new welder next to them

Color Descriptions

Black E-Coat – Deep Dark Black color with UV and corrosion protection.
E-coating is our new high tech in-house electrically applied and oven cured paint process with superior UV, salt water, and chemical resistance. E-Coat will last decades and not fade or purple with UV exposure like black anodizing.

Silver Anodized – Bright dip clear anodizing applied (IF YOU WANT SILVER THIS IS THE BEST CHOICE) (Still very bright and shiny but offers corrosion protection and some scratch resistance)

Satin (Raw Aluminum) – A bright and shiny / smooth aluminum machine finish with no coating.
(ONLY BUY THIS ONE IF YOU PLAN TO polish, paint or powder coat)



OEM Roll Cage Tubing Diameters

POLARIS

Pro 2 seat and 4 seat 2.0″

Turbo S 1.75″
XP1000 AND XP4 1000 1.75”
XP Turbo and XP4 Turbo 1.75”
RZR 900 2015 and up 1.75”
2014 and older RZR’s Perimeter 1.75”
2014 and older Polaris Ranger and RZR and RZR S and XP Rear Harness Bar and Rear Bumper crossbars 1.5” (4 seat versions have a 1.25” rear top crossbar as well)

General (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps)1.75” top crossbar only (rearview mount)
Ranger (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps)1.75” rear harness bar only
Ranger Crew (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps) Use 9” Bolt On mirror for rearview

Polaris RZR 170 1.25″

YAMAHA
YXZ 1000 1.75″ Perimeter Top crossbars 1.5”
Rhino Perimeter 1.75” Top Crossbars 1.5”
Rhino Steering column 1.5”
Viking and Viking  6 seater  2.0”
Wolverine Perimeter 2.0” Top Crossbars 1.5”

KAWASAKI

Kawasaki Teryx KRX 1.75
Kawasaki Teryx / Teryx 4 Perimeter 1.875” Top Crossbars 1.7”

HONDA

Talon 2.0″
Pioneer 1000 1.75”
Pioneer 700 1.625”
Pioneer  500 1.625”
Big Red 1.625”

ARCTIC CAT

XX 1.75″
Wildcat / Wildcat 4 1.75″
Prowler (must have aftermarket cage installed)

CANAM

Maverick X3 Perimeter 2 seat and 4 seat 1.85″

Maverick X3 Some top crossbars are 1.5″

Maverick X3 Rear harness bar 2.5″

Maverick Sport X XRC (Pro Fit cage NOT ROUND use PF-OUT & PF-IN)1.85” on all other round tubes on cage. 1.5″ on bumpers

Maverick Trail (Profile cage NOT ROUND use PF-OUT & PF-IN)1.85” on all other round tubes on cage. 1.5″ on bumpers

Commander 2.0”





WEIGHT 1.25 lbs
DIMENSIONS 6 × 4 × 2 in
FINISH

, ,
