Squadron Sport, Kit (Lights,1.75" Mounts,Harness) by Baja Designs
Free shipping with in the lower 48 states.
Set your UTV side by side a part from the rest with our Baja Designs UTV vehicle specific mounting kits. This kit comes equipped with a pair of Squadron Sport LED lights which feature a combined lumen count of 4,520 lumens and 40 watts. Whether you’re looking for more near field, side/backup or scene lighting, our Squadron Sport LED lights have you covered.
Compatible Models for 1.75” Mounts:
Arctic Cat Wildcat
Compatible Models for 2” Mounts:
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light):
Lumens: 2,260 Utilizing 4 LEDs
Wattage/Amps: 20W / 1.4A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

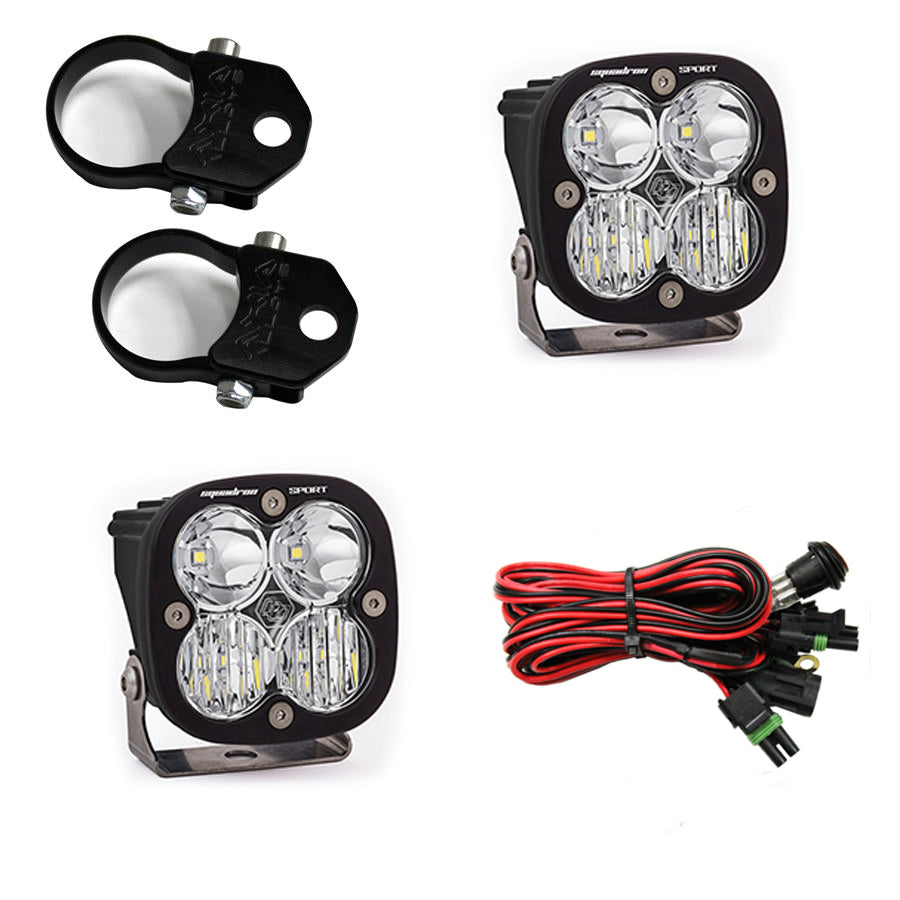

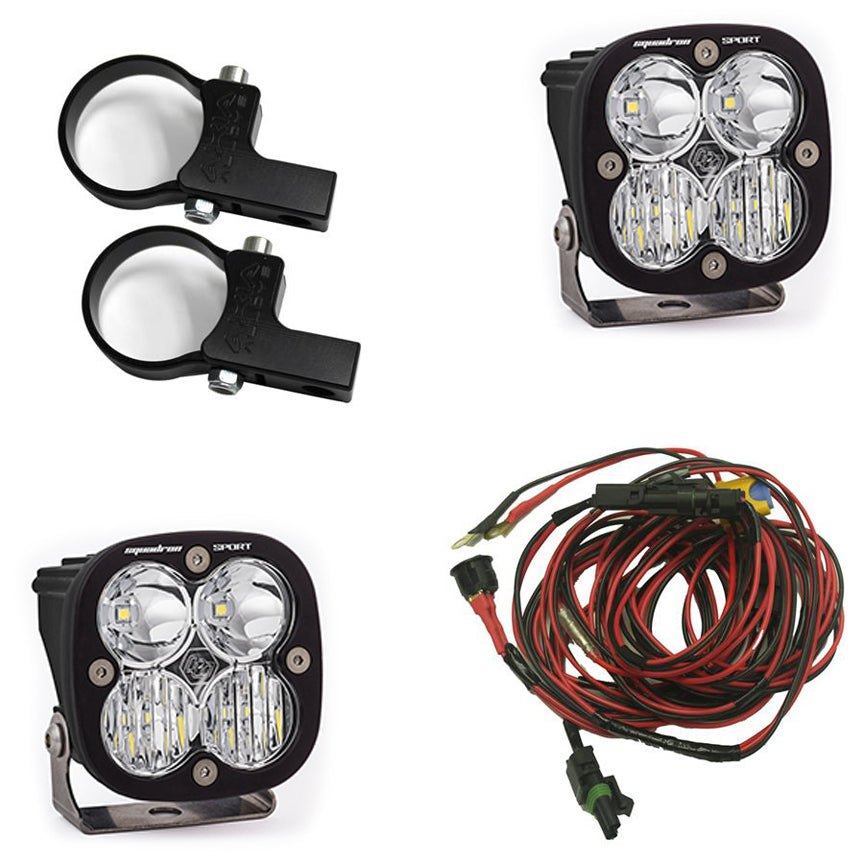

- (2) Squadron® Sport LED Lights
- (2) Mounts
- Wiring Harness
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (10°) and Spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
