Can-Am X3 Ring Gear Bolt Upgrade Kit by Torq Masters

Torq Masters

  • $ 39.99

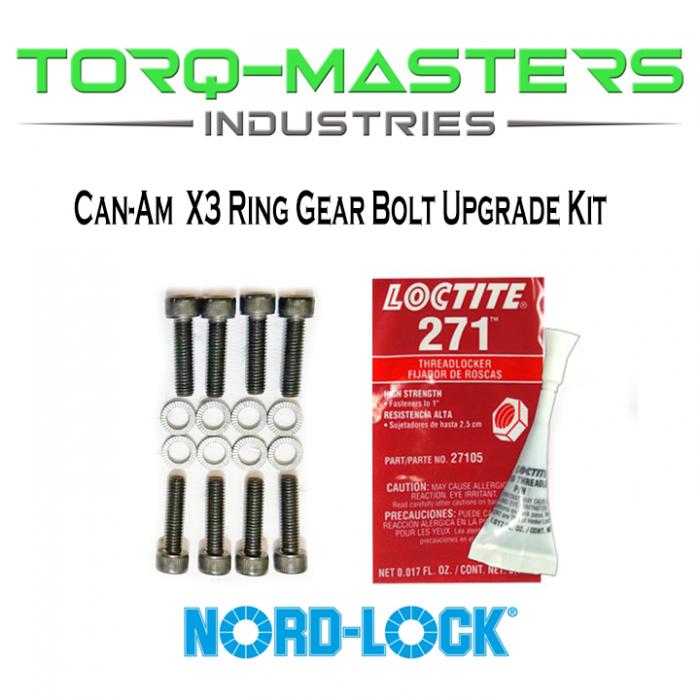

AC-X3RGK Can-Am X3 Front Differential Ring Gear Bolt Upgrade Kit

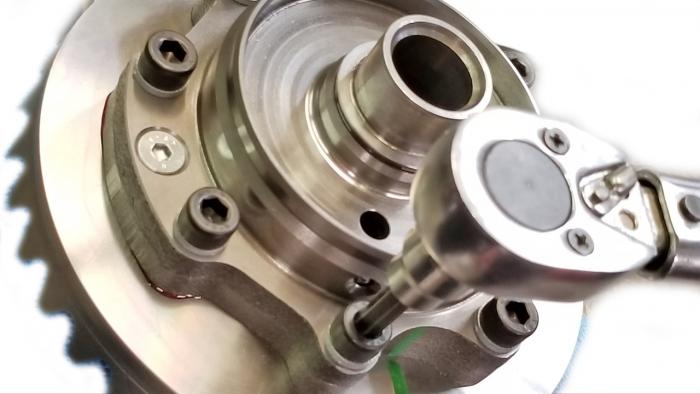

The AC-X3RGK Can-Am X3 front differential ring gear bolt upgrade kit by Torq-Masters Industries. replaces the stock Can-Am ring gear bolts with upgraded M8 bolts. Also included in the kit are specialty  Nord-Lock locking washers and 271 High Strength Threadlocker.

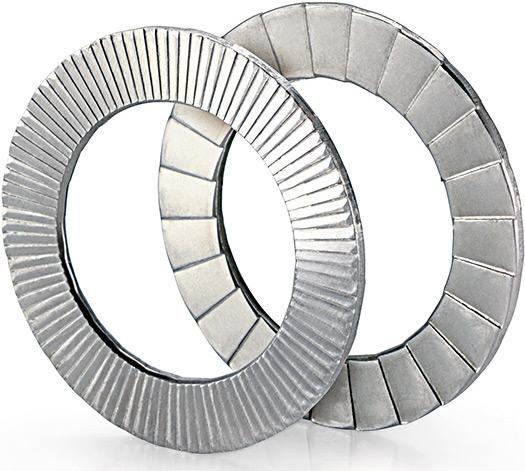

More about Nord-Lock: Nord-Lock wedge-locking products are recognized around the world for their ability to secure bolted joints exposed to severe vibration and dynamic loads. The system cannot loosen unintentionally as it creates a wedge underneath the bolt head/nut. An ideal solution for bolted joints where failure is not an option. Nord-Lock wedge-locking technology secures bolted joints with tension instead of friction. The system comprises of a pair of lock washers that has cams on one side and radial teeth on the opposite side. {}

To put it simply, Nord-Lock washers take more ft-lbs of torque to release than they do to tighten.


More about 271 High Strength Threadlocker: Loctite® Threadlocker Red 271™ is designed for the permanent locking and sealing of threaded fasteners. The product cures when confined in the absence of air between close fitting metal surfaces. It protects threads from rust and corrosion and prevents loosening from shock and vibration. It is only

removable once cured by heating up parts to 500°F (260°C). Recommended use on metal fasteners up to 1” (25 mm) in diameter such as bolts on decks, ready-to-assemble furniture, mounts, rings, gear bolts and frame bolts. {}

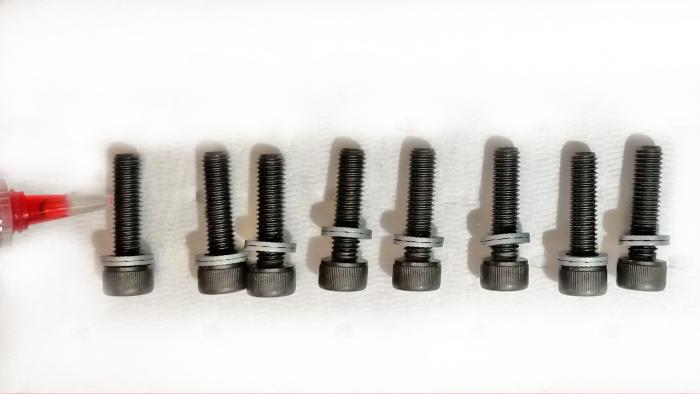

More about Upgraded M8 Ring Gear Bolts:  This kit includes upgraded M8, ISO 4762 Hex Drive Class 12.9, Black Oxide Finish Alloy Steel Socket Cap bolts. Class 12.9 metric bolts are the highest class for strength which exceeds Grade 8.  Socket Head Cap screws are ideal for precision work with close tolerances and applications needing a well tooled appearance. Socket Head Cap screws supply greater tensile strength than equivalent Hex Head Caps screws, while requiring less surface area to counterbore.


  • Qty 8, M8 Bolts
  • Qty 8, Nord-Lock Lock Washers (each washer system consists of 2 camming washers glued together)
  • Qty 1, Loctite Threadlocker Red 271
