Axia Alloys

  • $ 99.95
  • Save $ 0

Customizations Total: $ 0.00

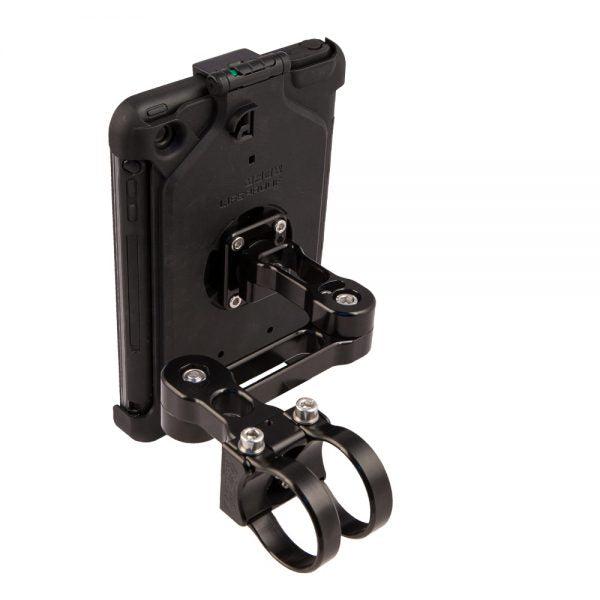

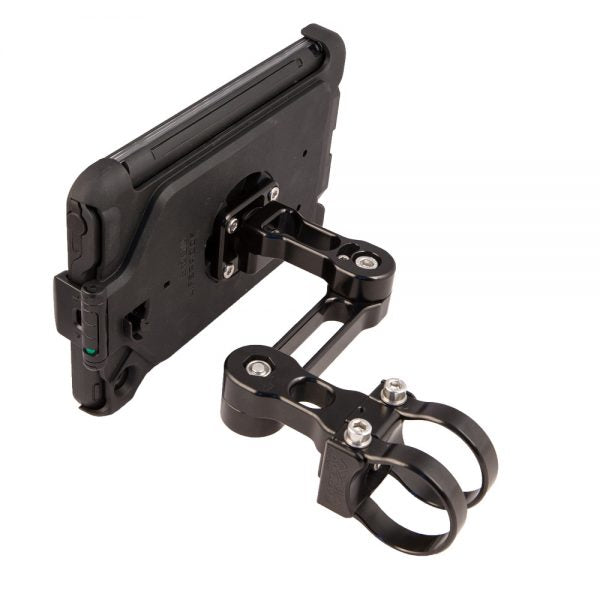

Customize the Axia Alloys device mounting arm to perfectly suit your specific needs. This device mounting arm will mount Tablets, GPS, Phones, etc. Without a doubt the most rigid, most adjustable, and most aesthetically pleasing device mounting arm in the Off Road and Powersports industry.

  • Begin with the Device arm base kit. (extends 5.5” from the leading edge of the mounting bar to back of device)
  • Choose your mounting clamp size

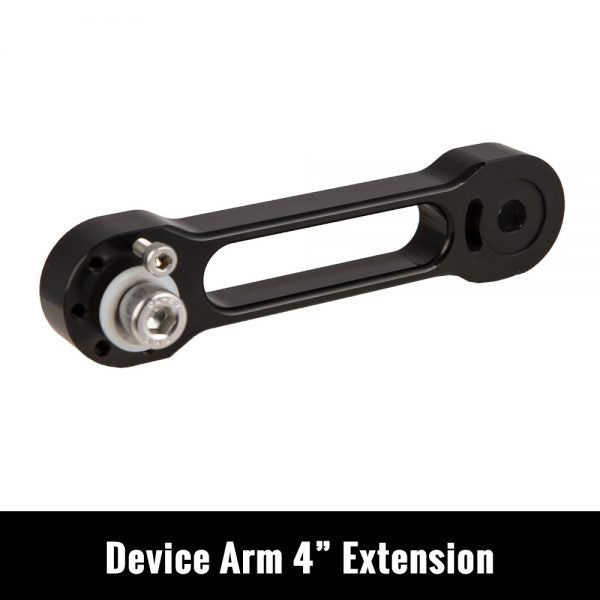

  • Add as many of the optional 4.0” or 6.0” extensions as necessary
  • Choose the correct end adapter for your specific device
    • AMPS standard spaced at 1.188 x 1.813 (30mm x 38mm)

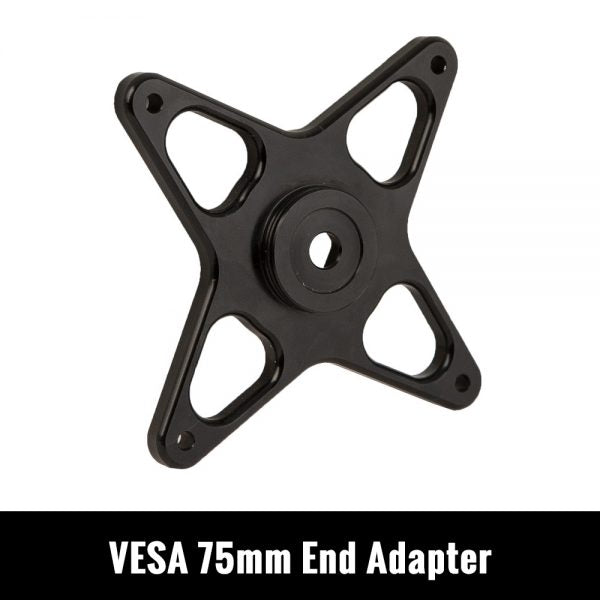

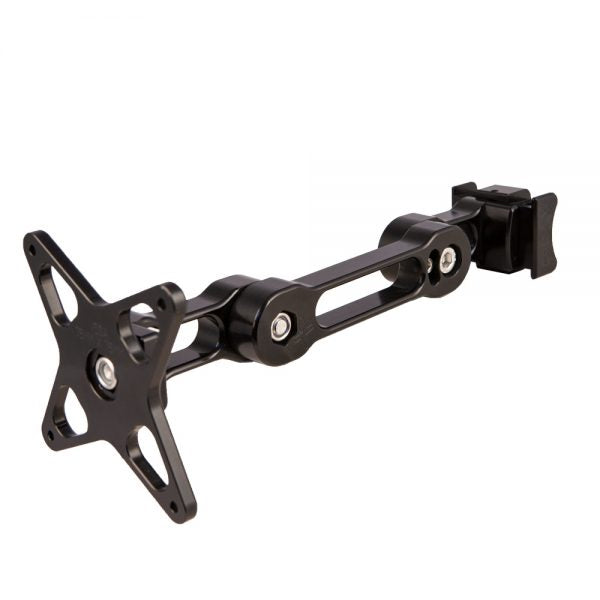

    • VESA 75mm standard spaced at 75mm x 75mm
    • Rear clip in mount standard to Lowrance Trophy GPS

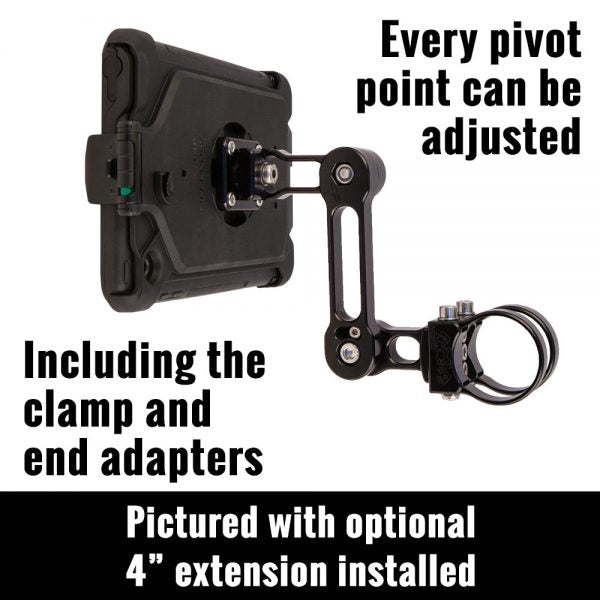

All pivot points on the device mounting arm feature adjustable angle and adjustable tension, or can be locked out for zero movement in very demanding off road environments

  • Base clamp adapter rotates a full 360’ (Base will not pivot on the fly as it only locks into any position upon installation)
  • All arm pivot points including the optional extensions can be locked into position or left to pivot
    • Install optional small socket head bolt in any pivot point to lock it out
    • Remove optional small socket head bolt and adjust tension to pivot any pivot point(Each pivot point has nylon washers at contact points for smooth pivot of device between passenger and driver)
  • End adapters feature a full 360’ rotation with a nylon washer and an o-ring to keep the elements out and adjustment smooth

Device mounting arm can be mounted vertically, horizontally, or on a bar of any angle.

  • Arm must be mounted with pivot points horizontal if you would like to allow it to pivot

What devices will this mount? – Just about any of them in any location with a little imagination.

  • AMPS standard is widely used in many handheld and larger GPS along with smaller Ipad cases
    • Magellan TRX7
    • Garmin handheld and automotive GPS

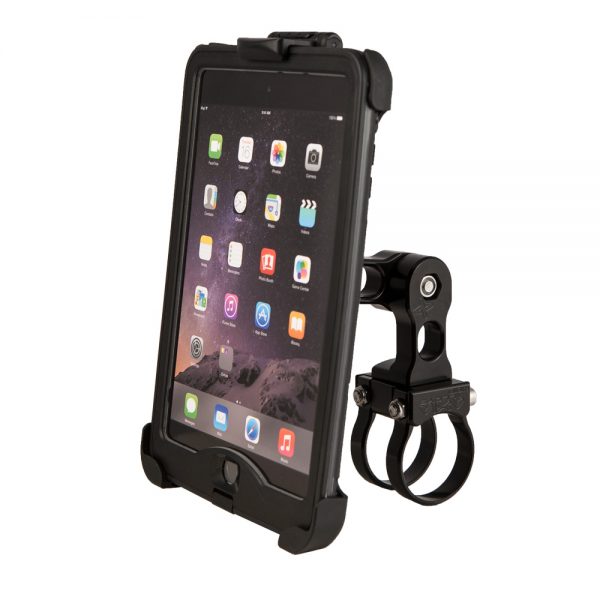

    • Ipad mini Lifeproof case and cradle
    • Many of the cradles available for all brands of handhelds
    • Ram Mount cradles and ball mounts
    • Thousands of other GPS and tablets
  • VESA 75mm standard is used on many of the larger IPad and tablet cases
    • Or buy a case and drill your own holes to match this end adapter

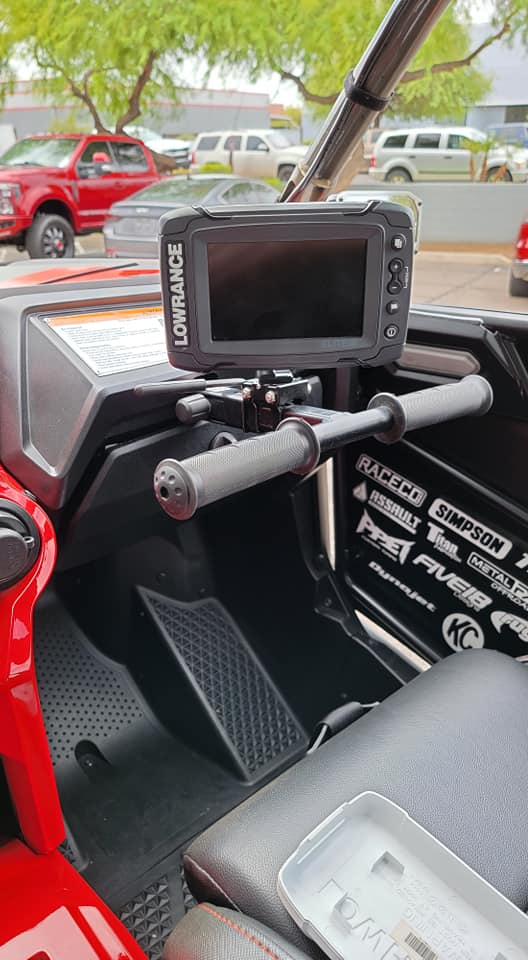

  • Lowrance Trophy 5M rear clip
    • Also works with Elite-5, Mark-5, Hook-5 & Elite 7 Ti Fishfinders
    • Possibly others if its Lowrance and clips into the back

Color & Roll Cage Size Information:

Clamp Types-

In addition to our standard strap clamps we now also have what we call Profile Cage Clamps that fit the Polaris Ranger/General, CanAm Defender and Maverick Trails.Because these can not pivot on a round cage we have both inward facing clamps and outward facing. If the clamp is available for your product it will be listed in the clamp size options as “PF-IN” for inward facing clamps or “PF-OUT” for outward facing clamps. These are the same price as our strap clamps.

Color Descriptions-

Black E-Coat – Deep Dark Black color with UV and corrosion protection.
E-coating is our new high tech in-house electrically applied and oven cured paint process with superior UV, salt water, and chemical resistance. E-Coat will last decades and not fade or purple with UV exposure like black anodizing.

Silver Anodized – Bright dip clear anodizing applied (IF YOU WANT SILVER THIS IS THE BEST CHOICE) (Still very bright and shiny but offers corrosion protection and some scratch resistance)

Satin (Raw Aluminum) – A bright and shiny / smooth aluminum machine finish with no coating.
(ONLY BUY THIS ONE IF YOU PLAN TO polish, paint or powder coat)

OEM Roll Cage Tubing Diameters-


Pro 2 seat and 4 seat 2.0″

Turbo S 1.75″
XP1000 AND XP4 1000 1.75”
XP Turbo and XP4 Turbo 1.75”
RZR 900 2015 and up 1.75”
2014 and older RZR’s Perimeter 1.75”
2014 and older Polaris Ranger and RZR and RZR S and XP Rear Harness Bar and Rear Bumper crossbars 1.5” (4 seat versions have a 1.25” rear top crossbar as well)

General (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps)1.75” top crossbar only (rearview mount)
Ranger (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps)1.75” rear harness bar only
Ranger Crew (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps) Use 9” Bolt On mirror for rearview

Polaris RZR 170 1.25″

YXZ 1000 1.75″ Perimeter Top crossbars 1.5”
Rhino Perimeter 1.75” Top Crossbars 1.5”
Rhino Steering column 1.5”
Viking and Viking  6 seater  2.0”
Wolverine Perimeter 2.0” Top Crossbars 1.5”


Kawasaki Teryx KRX 1.75
Kawasaki Teryx / Teryx 4 Perimeter 1.875” Top Crossbars 1.7”


Talon 2.0″
Pioneer 1000 1.75”
Pioneer 700 1.625”
Pioneer  500 1.625”
Big Red 1.625”


XX 1.75″
Wildcat / Wildcat 4 1.75″
Prowler (must have aftermarket cage installed)


Maverick X3 Perimeter 2 seat and 4 seat 1.85″

Maverick X3 Some top crossbars are 1.5″

Maverick X3 Rear harness bar 2.5″

Maverick Sport X XRC (Pro Fit cage NOT ROUND use PF-OUT & PF-IN)1.85” on all other round tubes on cage. 1.5″ on bumpers

Maverick Trail (Profile cage NOT ROUND use PF-OUT & PF-IN)1.85” on all other round tubes on cage. 1.5″ on bumpers

Commander 2.0”

Shared shipping only $7.99 in the lower 48 states.
