FILTERWEARS Pre-Filter A105 For aFe POWER Air Filters | Replaces aFe 28-10083
5302Direct from manufacturer. Made in the USA.

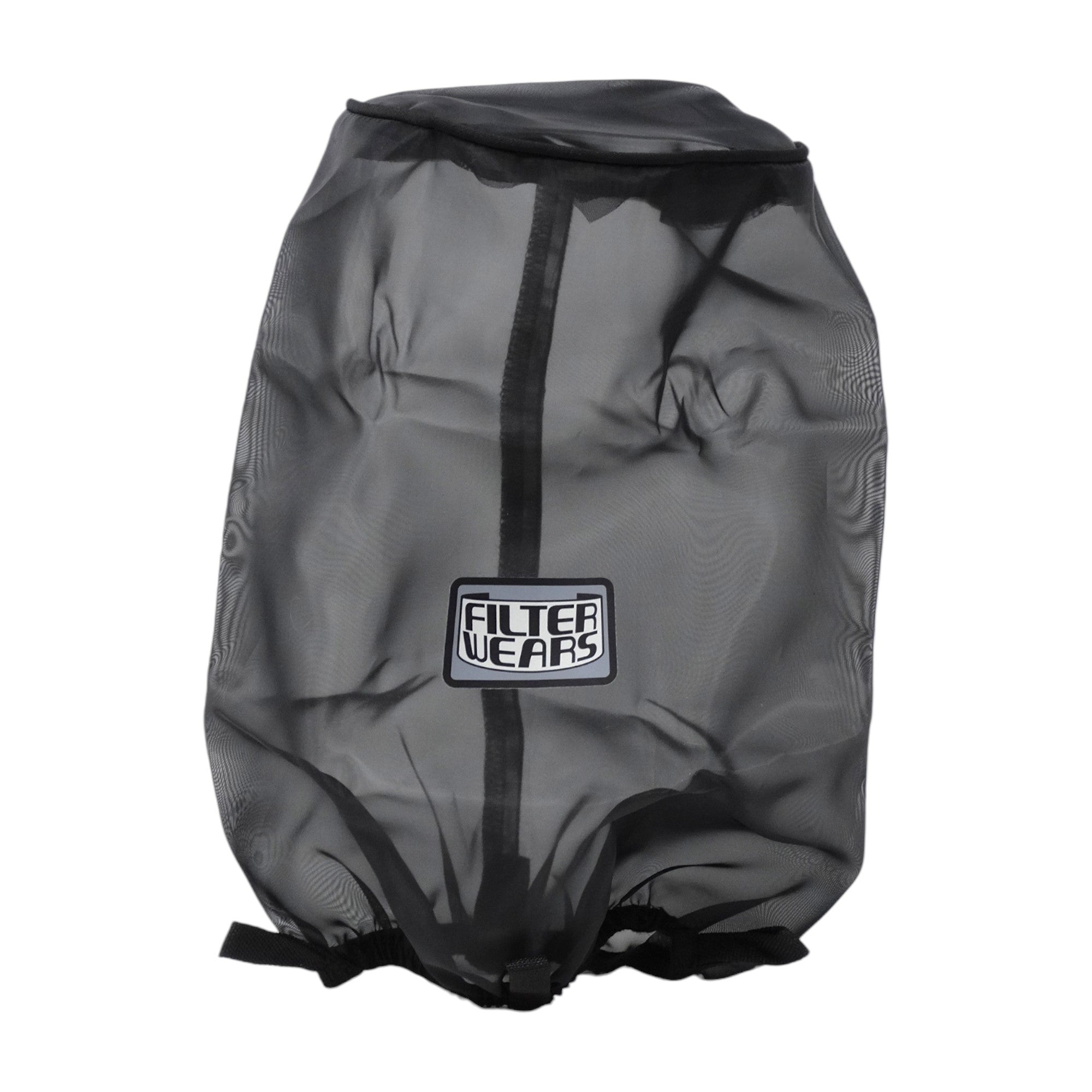

Filter material: 100% monofilament polyester with water repellent finish standard on all pre-filters. Closed top, round tapered pre-filter.
Measurements: 4.75"(top diameter), 6"(base diameter), 7"(height)
Fits aFe Air Filters: 21-28003, 24-28003, 21-30009, 21-30018, 24-30018, 72-30018, 21-35010, 24-35010, 21-35011, 24-35011, 21-35508, 24-35508, 72-35508, 21-40006, 24-40006, 21-40011, 24-40011, 72-40011, 21-40507, 24-40507, 21-45507, 24-45507, 21-90081, 24-90081, 21-90095, 24-90095, 21-90096, 24-90096, 21-91020, 24-91020, 72-91020, 21-91020-MA, 21-91073, 24-91073, 21-91090, 24-91090, 21-91097, 24-91097, 21-91103, 24-91103, 24-91103K, 21-91151, 24-91151, TF-9014D, TF-9024R, TF-9024D, TF-9027R, TF-9027D, TF-9028R, TF-9028D, 21-30009V, 21-30018V, 21-35010V, 21-35011V, 21-35508V, 21-40006V, 21-40011V, 21-40507V, 21-45507V, 21-90081V, 21-90095V, 21-91020V, 21-91090V
Cross Reference: aFe Magnum SHIELD Pre-Filter 28-10083
Fitment Table:
This pre-filter fits the following aFe POWER air filters and corresponding cold air intake systems. Use the table below to verify compatibility by part number, dimensions, or intake system.
| Air Filter Part Number | Air Filter Top Dimensions | Air Filter Base Dimensions | Air Filter Height | aFe Intake Part Number |
|---|---|---|---|---|
| 21-28003 | 5.25" diameter | 6" diameter | 7" | N/A |
| 24-28003 | 5.25" diameter | 6" diameter | 7" | N/A |
| 21-30009 | 4.75" diameter | 5" diameter | 7" | 85-10024 |
| 21-30018 | 4.75" diameter | 6" diameter | 7" | 51-10152, 51-11552-1 |
| 24-30018 | 4.75" diameter | 6" diameter | 7" | 54-10142, 54-11052, 54-11552-1 |
| 72-30018 | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-35010 | 4.75" diameter | 6" diameter | 6" | N/A |
| 24-35010 | 4.75" diameter | 6" diameter | 6" | 54-10751 |
| 21-35011 | 4.75" diameter | 6" diameter | 7" | N/A |
| 24-35011 | 4.75" diameter | 6" diameter | 7" | 54-12562 |
| 21-35508 | 3.5" diameter | 5" diameter | 8" | N/A |
| 24-35508 | 3.5" diameter | 5" diameter | 8" | N/A |
| 72-35508 | 3.5" diameter | 5" diameter | 8" | N/A |
| 21-40006 | 4" diameter | 6" diameter | 6" | N/A |
| 24-40006 | 4" diameter | 6" diameter | 6" | N/A |
| 21-40011 | 4.75" diameter | 6" diameter | 7" | 51-10922 |
| 24-40011 | 4.75" diameter | 6" diameter | 7" | 54-12602 |
| 72-40011 | 4.75" diameter | 6" diameter | 7" | 85-10036 |
| 21-40507 | 4" diameter | 6" diameter | 7" | 51-11112 |
| 24-40507 | 4" diameter | 6" diameter | 7" | 54-11112 |
| 21-45507 | 4.75" diameter | 6" diameter | 7" | 51-12462, F2-03013 |
| 24-45507 | 4.75" diameter | 6" diameter | 7" | 54-11772, 54-12462, 54-12622 |
| 21-90081 | 4.75" diameter | 5" diameter | 7" | N/A |
| 24-90081 | 4.75" diameter | 5" diameter | 7" | 54-12492 |
| 21-90095 | 4.75" diameter | 6" diameter | 7" | 54-13025D |
| 24-90095 | 4.75" diameter | 6" diameter | 7" | 54-12842, 54-13025R |
| 21-90096 | (2.75"x6") oval | (5"x5.75") oval | 6.5" | 51-12912-B, 51-12912-C, 51-12922-B, 51-12922-C |
| 24-90096 | (2.75"x6") oval | (5"x5.75") oval | 6.5" | 54-12912-B, 54-12912-C, 54-12922-B, 54-12922-C |
| 21-91020 | 4.5" diameter | 6" diameter | 6" | 54-13055D, 54-83038D, 57-10013D, 58-10007D |
| 24-91020 | 4.5" diameter | 6" diameter | 6" | 54-13055R, 54-83038R, 57-10013R, 58-10007R |
| 72-91020 | 4.5" diameter | 6" diameter | 6" | N/A |
| 21-91020-MA | 4.5" diameter | 6" diameter | 6" | 54-13055D, 54-83038D, 57-10013D, 58-10007D |
| 21-91073 | 4.5" diameter | 6" diameter | 6.5" | 51-76301, 51-76315 |
| 24-91073 | 4.5" diameter | 6" diameter | 6.5" | 54-76301, 54-76315 |
| 21-91090 | 4.5" diameter | 6" diameter | 6" | N/A |
| 24-91090 | 4.5" diameter | 6" diameter | 6" | TR-5201B-R, TR-5307B-R |
| 21-91097 | 4.5" diameter | 5" diameter | 6.5" | 50-70068D, 50-70083D, 50-70097D, 51-76305, 51-76305-CF, 56-70001D |
| 24-91097 | 4.5" diameter | 5" diameter | 6.5" | 50-70068R, 50-70083R, 50-70097R, 54-76305, 54-76305-CF, 56-70001R |
| 21-91103 | 4.5" diameter | 5" diameter | 7.5" | 50-70036D, 50-70087D, 50-70088D, 50-70104D, 51-76309, 51-76312, 51-76403, 51-76901, 56-70002D, 56-70003D, 56-70006D, 56-70010D, 56-70014D, 56-70016D, 56-70023D, 56-70025D, 56-70031D, 56-70034D, 56-70044D, 56-70045D, 56-70052D, 56-70053D, 56-70056D, 56-70062D, 56-70062DR, 56-70065D, 56-70065DN, 56-70069D, 58-10002D, TM-1024B-D, TM-1025B-D, TM-1026B-D, TM-2018B-D, TM-2019B-D |
| 24-91103 | 4.5" diameter | 5" diameter | 7.5" | 50-70036R, 50-70087R, 50-70088R, 50-70104R, 54-76309, 54-76312, 54-76403, 54-76901, 56-70002R, 56-70003R, 56-70006R, 56-70010R, 56-70014R, 56-70016R, 56-70023R, 56-70025R, 56-70031R, 56-70034R, 56-70044R, 56-70045R, 56-70052R, 56-70053R, 56-70056R, 56-70062R, 56-70065R, 56-70069R, 58-10002R, TM-1024B-R, TM-1025B-R, TM-1026B-R, TM-2018B-R, TM-2019B-R |
| 24-91103K | 4.5" diameter | 5" diameter | 7.5" | 56-70056KN |
| 21-91151 | 4.5" diameter | 4.5" diameter | 7" | 50-70046D, 50-70046DN |
| 24-91151 | 4.5" diameter | 4.5" diameter | 7" | 50-70046R |
| TF-9014D | 4.75" diameter | 6" diameter | 7" | TA-4301P |
| TF-9024R | 4.5" diameter | 6" diameter | 7" | TA-4306B-R |
| TF-9024D | 4.5" diameter | 6" diameter | 7" | TA-4306B-D |
| TF-9027R | 4.5" diameter | 5" diameter | 6.75" | TR-2017L-R |
| TF-9027D | 4.5" diameter | 5" diameter | 6.75" | TR-2017L-D |
| TF-9028R | 4.5" diameter | (5"x5.75") oval | 7" | 56-10007R, 56-10008R, 56-10009R, 56-10018R, 56-10020R, 56-10027R, TR-3021B-R |
| TF-9028D | 4.5" diameter | (5"x5.75") oval | 7" | 56-10007D, 56-10008D, 56-10009D, 56-10018D, 56-10020D, 56-10027D, TR-3021B-D |
| 21-30009V | 4.75" diameter | 5" diameter | 7" | N/A |
| 21-30018V | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-35010V | 4.75" diameter | 6" diameter | 6" | N/A |
| 21-35011V | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-35508V | 3.5" diameter | 5" diameter | 8" | N/A |
| 21-40006V | 4" diameter | 6" diameter | 6" | N/A |
| 21-40011V | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-40507V | 4" diameter | 6" diameter | 7" | N/A |
| 21-45507V | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-90081V | 4.75" diameter | 5" diameter | 7" | N/A |
| 21-90095V | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-91020V | 4.5" diameter | 6" diameter | 6" | N/A |
| 21-91090V | 4.5" diameter | 6" diameter | 6" | N/A |
