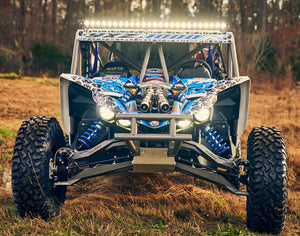

HCR Yamaha YXZ 1000 Dual Sport Long Travel Suspension Kit
SKU: YXZ-02400
HCR Racing is proud to introduce the +4 YXZ Complete Long Travel Suspension System to it’s product portfolio. Following the style and strength of HCR’s recent releases, with a modern edge.
Kit Features:
Usable Travel : Over 20 front & Over 21” Rear Travel
+4 inches wider per side; Additional 8 inches of track width
+4 inches of wheel base added ; 2 front , 2 rear
Fiber Laser Cut construction for precise fit and finish
CNC'd 4130 heat treated billet mounting points for increased integrity
Angled catacomb design for optimal force distribution
RCV +4 extended axle bars. Heat Treated & through hardened
Custom King 2.5 HCR race Series Shocks Off -road shocks
Unique trailing arm inspired design for minimal added weight and increased strength.
High Clearance Boxed A-Arm Design
Each piece is carefully tig welded for strength and aesthetics
OEM ball joints are reused to maximize low speed steering, ease & smooth travel with less maintenance
compatible with stock wheels
High-Clearance Arms provide an increase of 1.25” in ground clearance
100% Bolt-on installation using factory mounting points
Larger front tube mounts are 1.25” in diameter with Delrin bushings for increased strength and durability
Free Shipping with in the Lower 48 States.
4 Front A-arms
4 Rear Control arms
4 RCV Extended Axle Bars
1 Stock Series Shock Tower
1 set of tie rod extensions
Hardware pack
YXZ Installation guide
