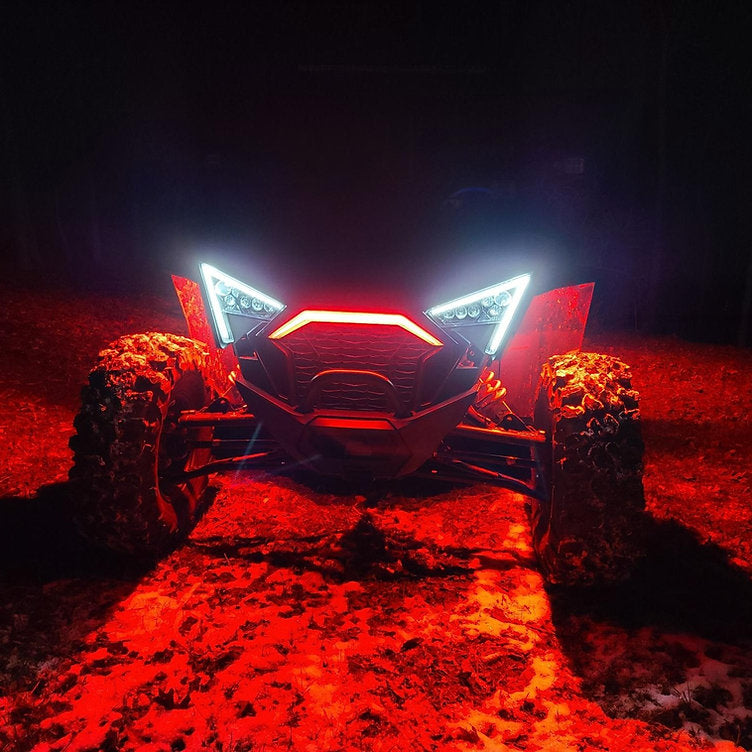

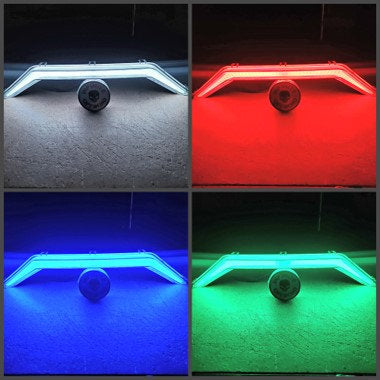

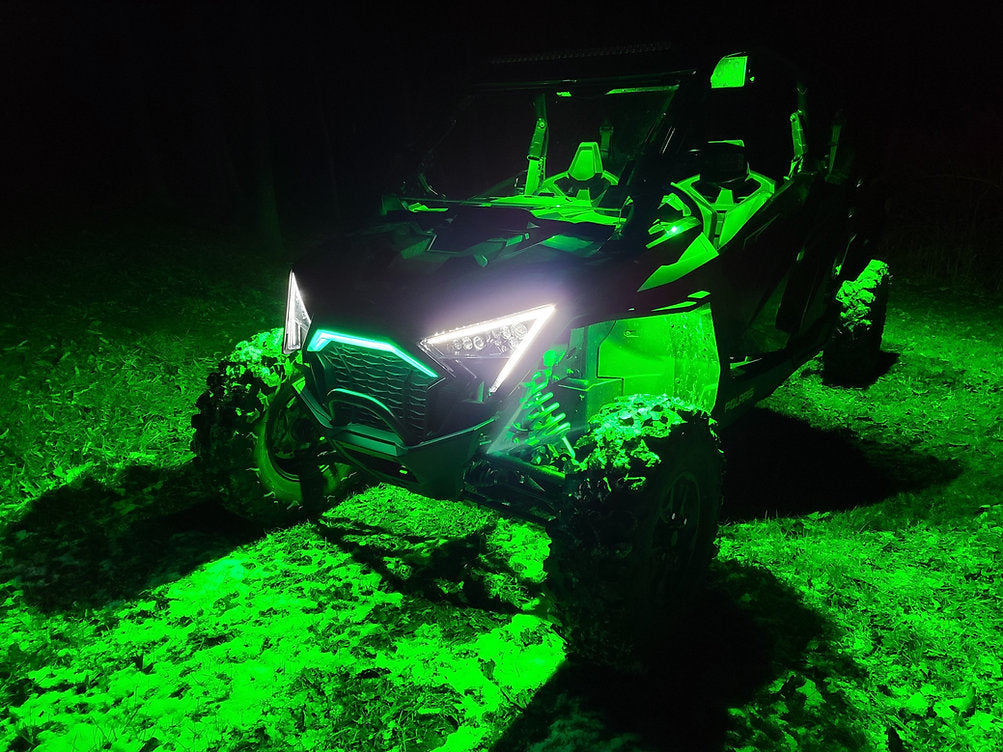

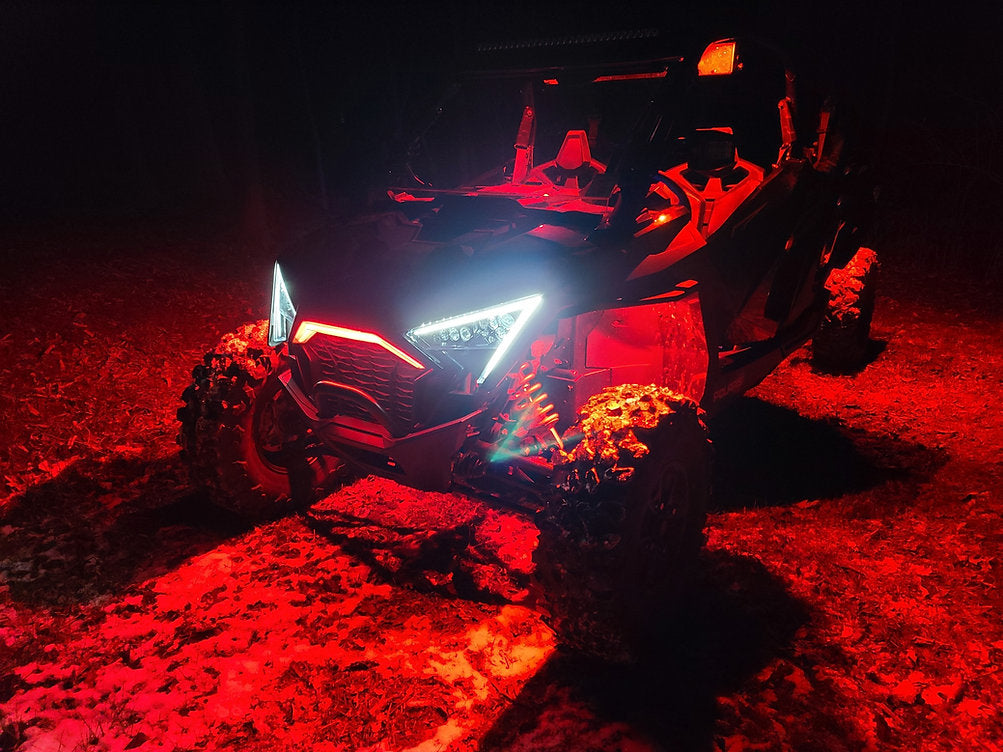

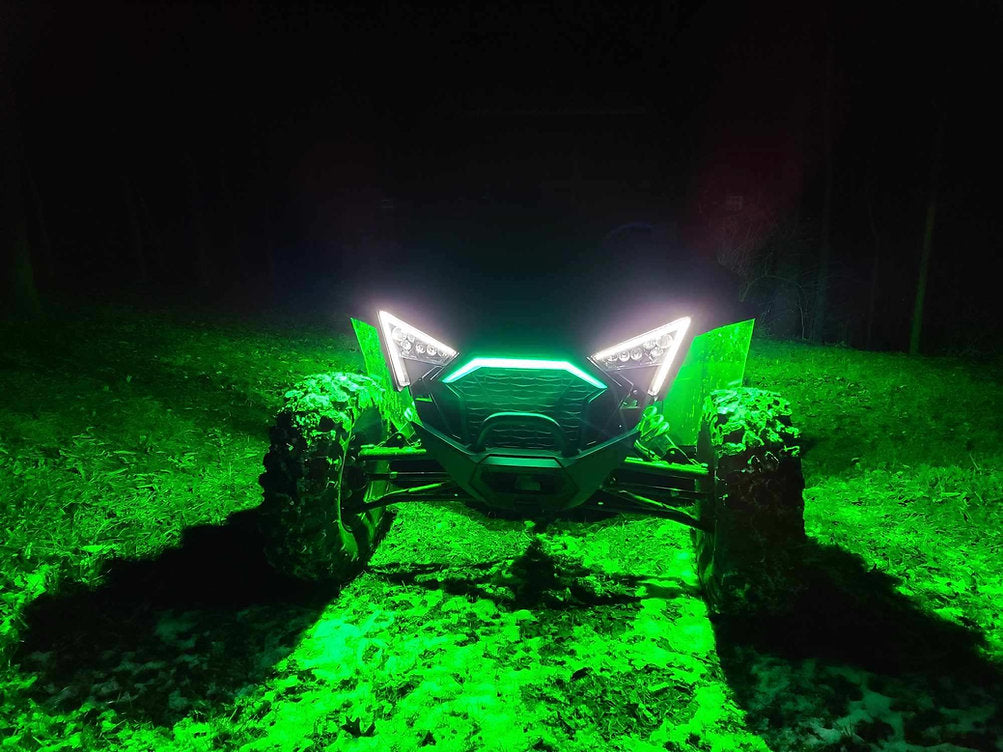

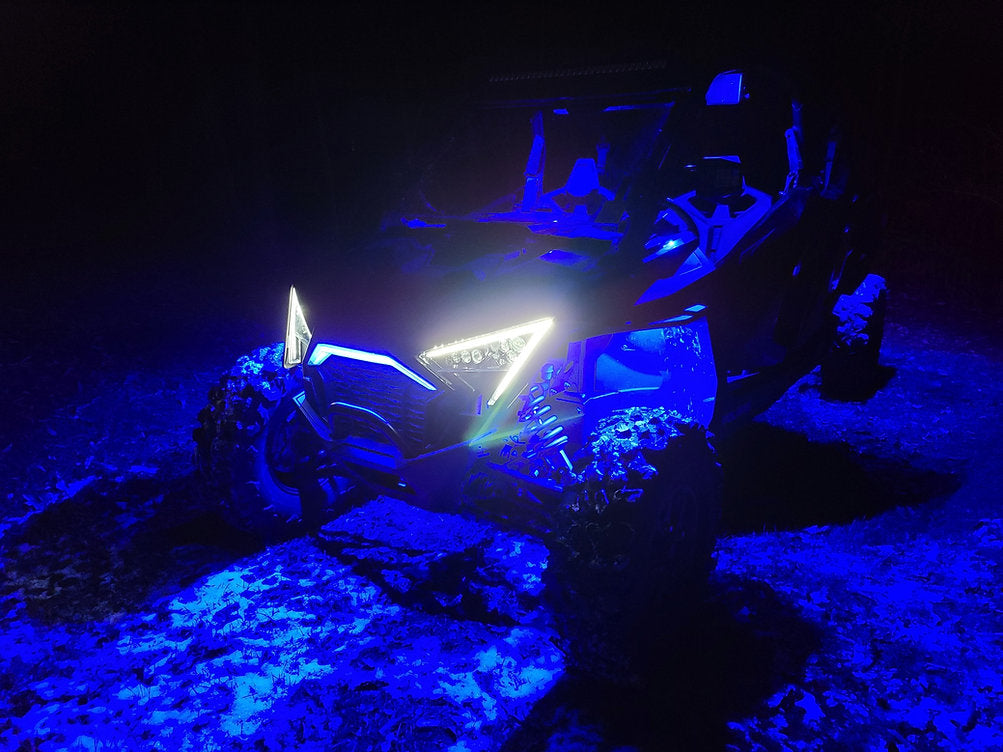

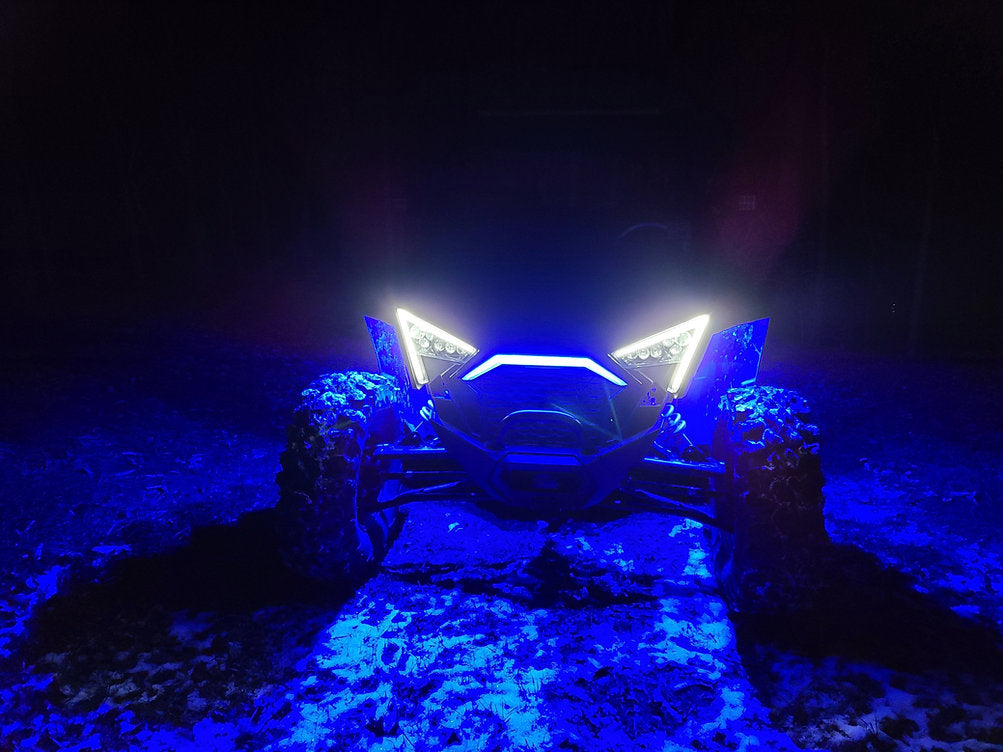

Infinite Offroad (RGB+W) RZR PRO XP, PRO R, TURBO R Accent Lights
Our all new RGB+W RZR PRO XP accent lights are fully plug and play with our RGB+W rock light kits. Makes installation a breeze and allows you to plug these directly into your current rock light system or add on a dedicated controller and control separately. *Rock light kit not included & you must order dedicated controller if your not currently running/ordering our rock light system*
Did we mention we also have the best warranty on the market? 25 yr if you can break it we replace it warranty (includes accidental damage).
Our all new RGB+W Bluetooth & RF Controller allows dual control from a bluetooth app or a back up handheld remote. Controller also includes brake override option which will turn the kit on and to red if it is wired to your positive brake wire as well as a white override function that can be used to turn the kit white with a dome switch or courtesy light.
DOWNLOAD INSTRUCTIONS & DIAGRAM
Click APPLE or ANDROID to Download the app
We offer two ways to control these lights:
No Controller: Add to RGB+W 5 Pin Rock Light System:
This option allows you to plug this directly into our RGB+W rock light kit and run them together. The lights cannot be controlled independently. Comes with needed wiring to plug into your current RGB+W 5 pin system.
Include Dedicated Controller: w/ Option to link two controllers to one remote.
This option allows you to run by itself if your not running our rock light system or if you want to control them independently at times or link together to one remote.
*If you are not running our color change rock lights you will need to choose this option.*
*To run a dedicated controller & sync to your current one you must be running the controller that uses the app LED BLE*
Requires phone to use BT control via BLEDIM app. Also includes extra RF remote, remote does not require line of sight it is paired with the controller.
BLUETOOTH APP CONNECTION:
- Download app “BLEDIM” in the app store.
- DO NOT connect to the device in your phone settings menu
- Once connected you can adjust/create colors and patterns as well as turn on and off, the controller should retain the last used setting when powered off then back on.
RF HANDHELD REMOTE PAIR OR LOCK REMOTE: To pair the remote if connection lost or lock it so other remotes cannot control.
- Hold green power button.
- Remove fuse from controller for 5 seconds, place back in.
- Continue to hold green power button for 3 seconds
BRAKE/RED OVER RIDE: Connect blue wire to brake power wire, this will turn on red even if the lights are turned off and will override any current color if already on, we suggest placing on its own switch to only activate when you want it to.
COURTESY WHITE OVER RIDE: Connect white wire to switch or cortesy lights, this will turn on white even if the lights are turned off and will override any current color if already on.
*Additional instuctions can be downloaded*
