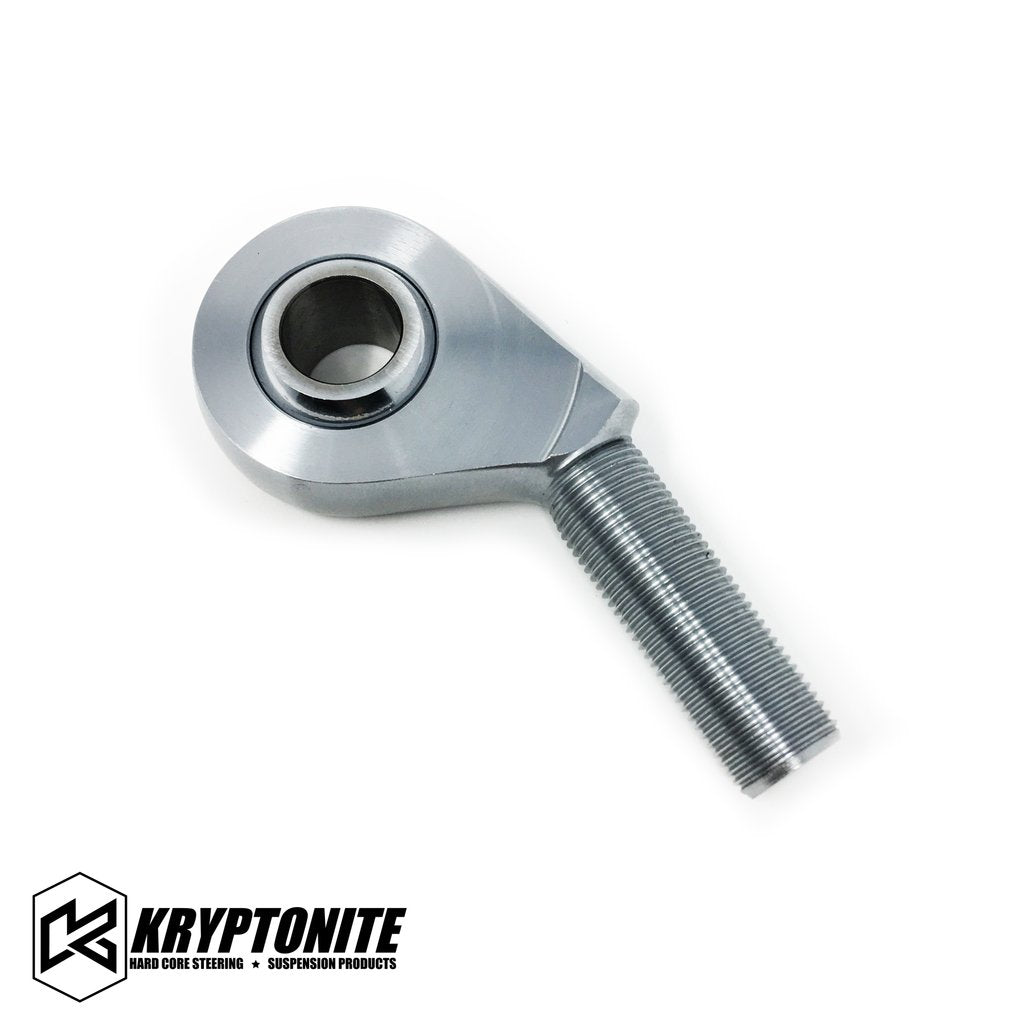

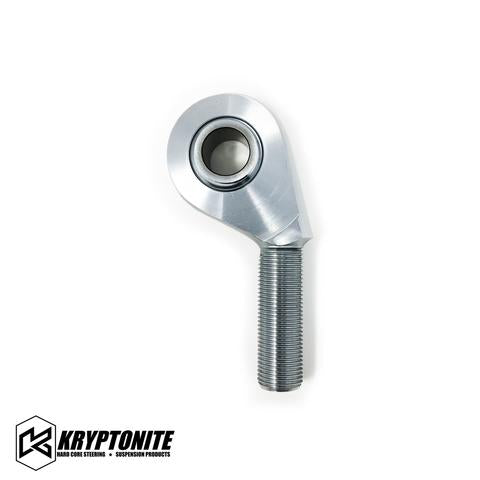

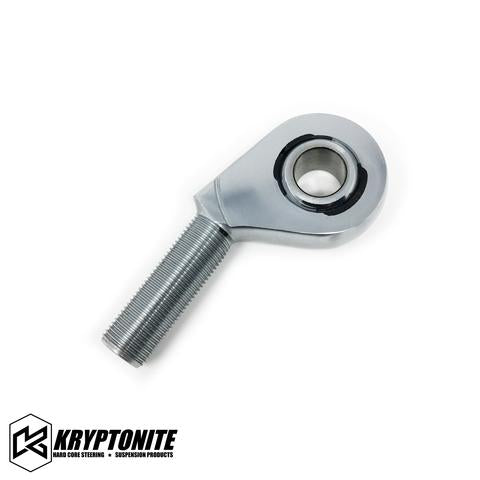

HEAVY DUTY OFFSET 5/8" HEIM JOINT FOR UTV by Kryptonite
Fits; Kryptonite and Many Other Brand UTV Tie Rod and Radius Rod Systems. Left Hand Thread 5/8" x 18 threads per inch, Shank 5/8" Bore 3/4" Offset.
Tie rods and heim joints sold separately, These parts will NOT work with your oem tie rods**
Please contact us if you are unsure which size you need.
These Rod Ends are manufactured from the highest quality materials using both a high strength alloy and Teflon liner.
- High Strength Aircraft Grade 4130 Chromoly Steel
- Kevlar Reinforced Teflon Lining
- Zinc Plated for corrosion resistance
- The Center Ball is manufactured from 52100 Bearing Steel, Heat Treated, Hard Chromed and precision ground.
Finally there is an option for a 5/8 by 5/8" Offset heim joint! This unique joint will allow for Tie Rods and other steering/ suspension linkage fitment with need for clearance and offset in tight spots.
These Rod End's are sold individually. All Rod Ends are wearable parts meaning at some point replacement will need to happen. Choose your thread direction/Style above.
Shipping only $9.99 a pair in the lower 48 states.
