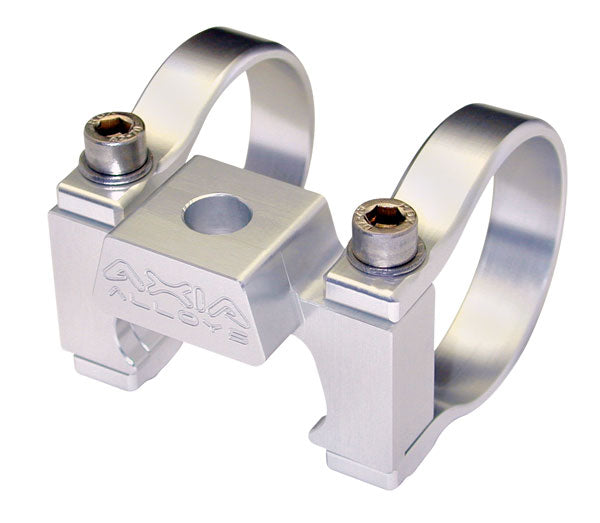

Large Light Mount for 7″ and larger LED - by Axia Alloys

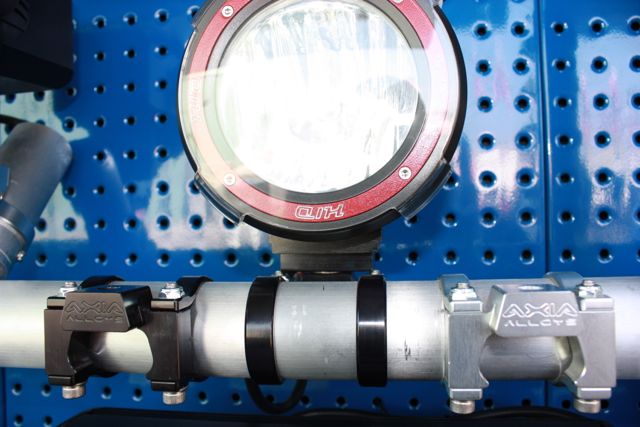

This large light mount allows you to mount a wide variety of offroad lights directly to your front bumper, cage, wakeboard tower or any round tubing.
It can be mounted with the hole in front of the tubing if there are clearance issues or behind the tubing for a very clean install.
Recommended for 7″ and larger LED lights but can be used with smaller as well.
Price is for 1 mount and 2 clamps of any size.
Color & Roll Cage Size Information:
In addition to our standard strap clamps we now also have what we call Profile Cage Clamps that fit the Polaris Ranger/General, CanAm Defender and Maverick Trails.Because these can not pivot on a round cage we have both inward facing clamps and outward facing. If the clamp is available for your product it will be listed in the clamp size options as “PF-IN” for inward facing clamps or “PF-OUT” for outward facing clamps. These are the same price as our strap clamps.
Black E-Coat – Deep Dark Black color with UV and corrosion protection.
E-coating is our new high tech in-house electrically applied and oven cured paint process with superior UV, salt water, and chemical resistance. E-Coat will last decades and not fade or purple with UV exposure like black anodizing.
Silver Anodized – Bright dip clear anodizing applied (IF YOU WANT SILVER THIS IS THE BEST CHOICE) (Still very bright and shiny but offers corrosion protection and some scratch resistance)
Satin (Raw Aluminum) – A bright and shiny / smooth aluminum machine finish with no coating.
(ONLY BUY THIS ONE IF YOU PLAN TO polish, paint or powder coat)
OEM Roll Cage Tubing Diameters-
Pro 2 seat and 4 seat 2.0″
Turbo S 1.75″
XP1000 AND XP4 1000 1.75”
XP Turbo and XP4 Turbo 1.75”
RZR 900 2015 and up 1.75”
2014 and older RZR’s Perimeter 1.75”
2014 and older Polaris Ranger and RZR and RZR S and XP Rear Harness Bar and Rear Bumper crossbars 1.5” (4 seat versions have a 1.25” rear top crossbar as well)
General (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps)1.75” top crossbar only (rearview mount)
Ranger (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps)1.75” rear harness bar only
Ranger Crew (Pro Fit cage NOT ROUND use PF-OUT & PF-IN clamps) Use 9” Bolt On mirror for rearview
Polaris RZR 170 1.25″
YXZ 1000 1.75″ Perimeter Top crossbars 1.5”
Rhino Perimeter 1.75” Top Crossbars 1.5”
Rhino Steering column 1.5”
Viking and Viking 6 seater 2.0”
Wolverine Perimeter 2.0” Top Crossbars 1.5”
Kawasaki Teryx KRX 1.75
Kawasaki Teryx / Teryx 4 Perimeter 1.875” Top Crossbars 1.7”
Pioneer 1000 1.75”
Pioneer 700 1.625”
Pioneer 500 1.625”
Big Red 1.625”
Wildcat / Wildcat 4 1.75″
Prowler (must have aftermarket cage installed)
Maverick X3 Perimeter 2 seat and 4 seat 1.85″
Maverick X3 Some top crossbars are 1.5″
Maverick X3 Rear harness bar 2.5″
Maverick Sport X XRC (Pro Fit cage NOT ROUND use PF-OUT & PF-IN)1.85” on all other round tubes on cage. 1.5″ on bumpers
Maverick Trail (Profile cage NOT ROUND use PF-OUT & PF-IN)1.85” on all other round tubes on cage. 1.5″ on bumpers
Shared shipping only $7.99 in the lower 48 states.
