MAVERICK X3 BILLET PROOF RADIUS ROD PLATE WITH TOW RING by CT Raceworx
MAVERICK X3 BILLET PROOF RADIUS ROD PLATE WITH TOW RING
Free Shipping (lower 48 states only)
We've taken 2 different grades of aluminum to create the nicest and strongest billet aluminum tow ring ever put on a UTV!

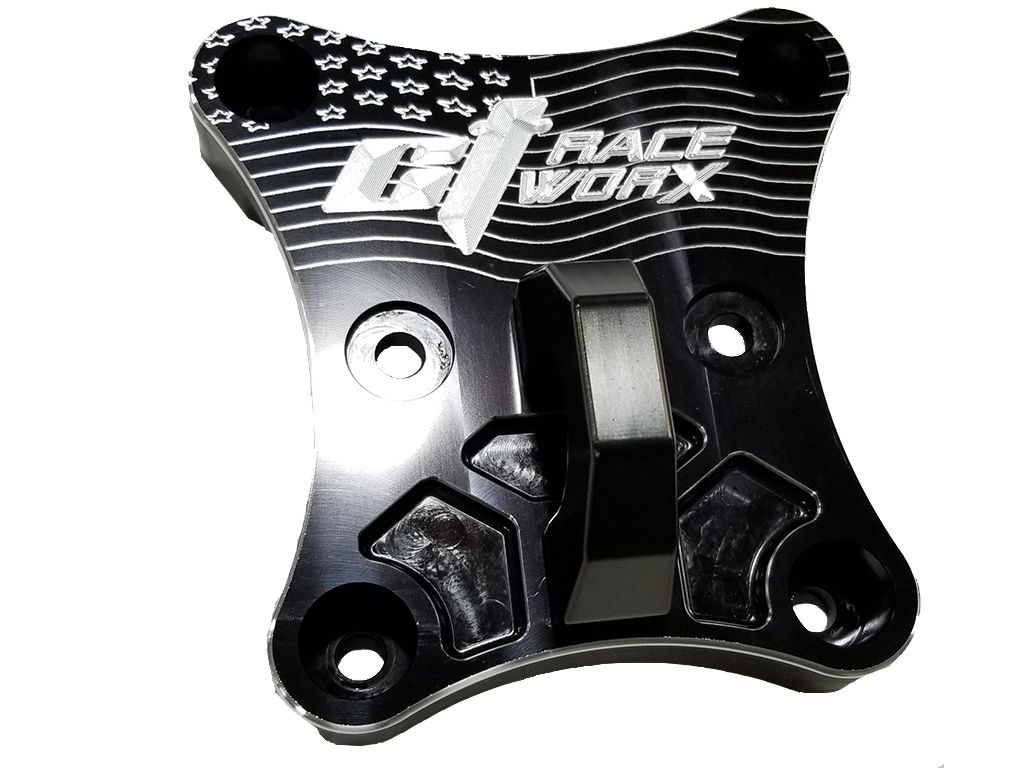

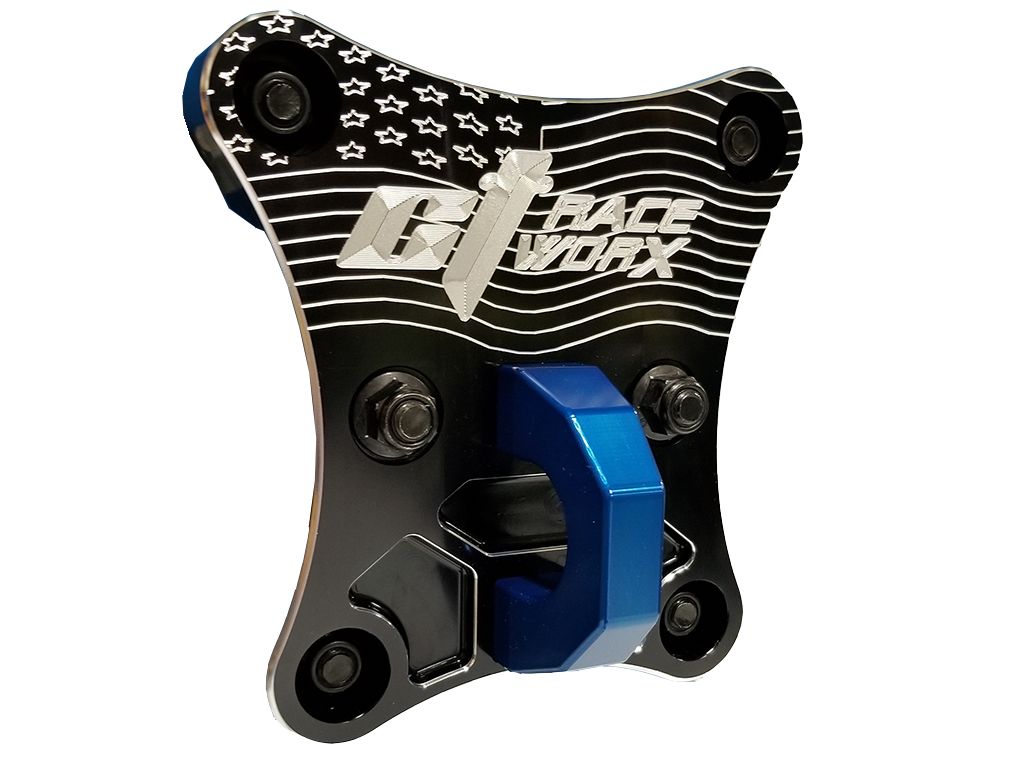

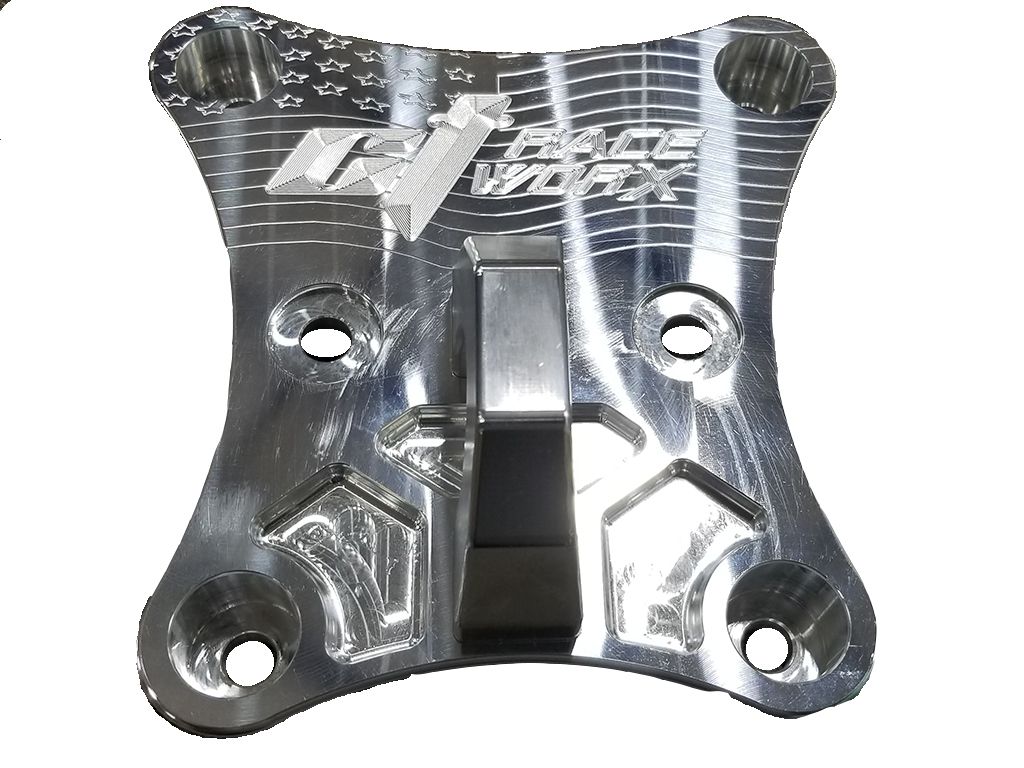

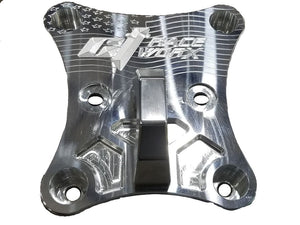

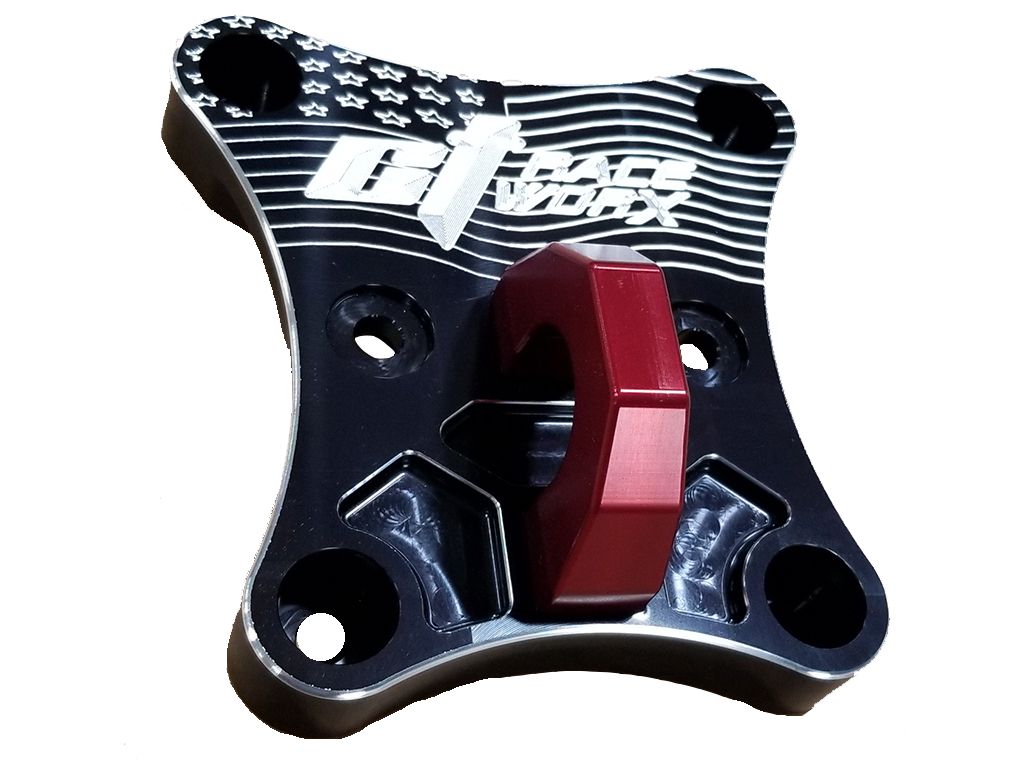

The base plate starts out as a piece of 1.25" thick 6061 T6 aluminum. When machining is done it is still 1.25" at the thickest point and the majority of the way through the plate for maximum strength and rigidity. Next we machine the tow ring from a piece of 1.25" thick 7075 T6 aluminum which is roughly twice the strength of 6061 aluminum. We choose this material because of the tow ring is going to see the most of the stress and we need the thread strength. The tow ring recesses into the face of the plate and is pressed into place, the 1/2" bolts come in from the back side and have 1.5" of thread engagement into the ring adding strength to the assembly. We're working with Master Pull and they're building us tow straps that are 3ft long and looped on both ends so you don't have to scratch up the plate with a hook or clevis. These will be an additional option at the time of purchase and will be $40 or less, the price isn't nailed down yet. In production these plates will be anodized black, as well as the tow point, and then machined again in certain areas to give them a look so nice you can hang it on the wall.
