Sector 15" Wheel by DWT Racing

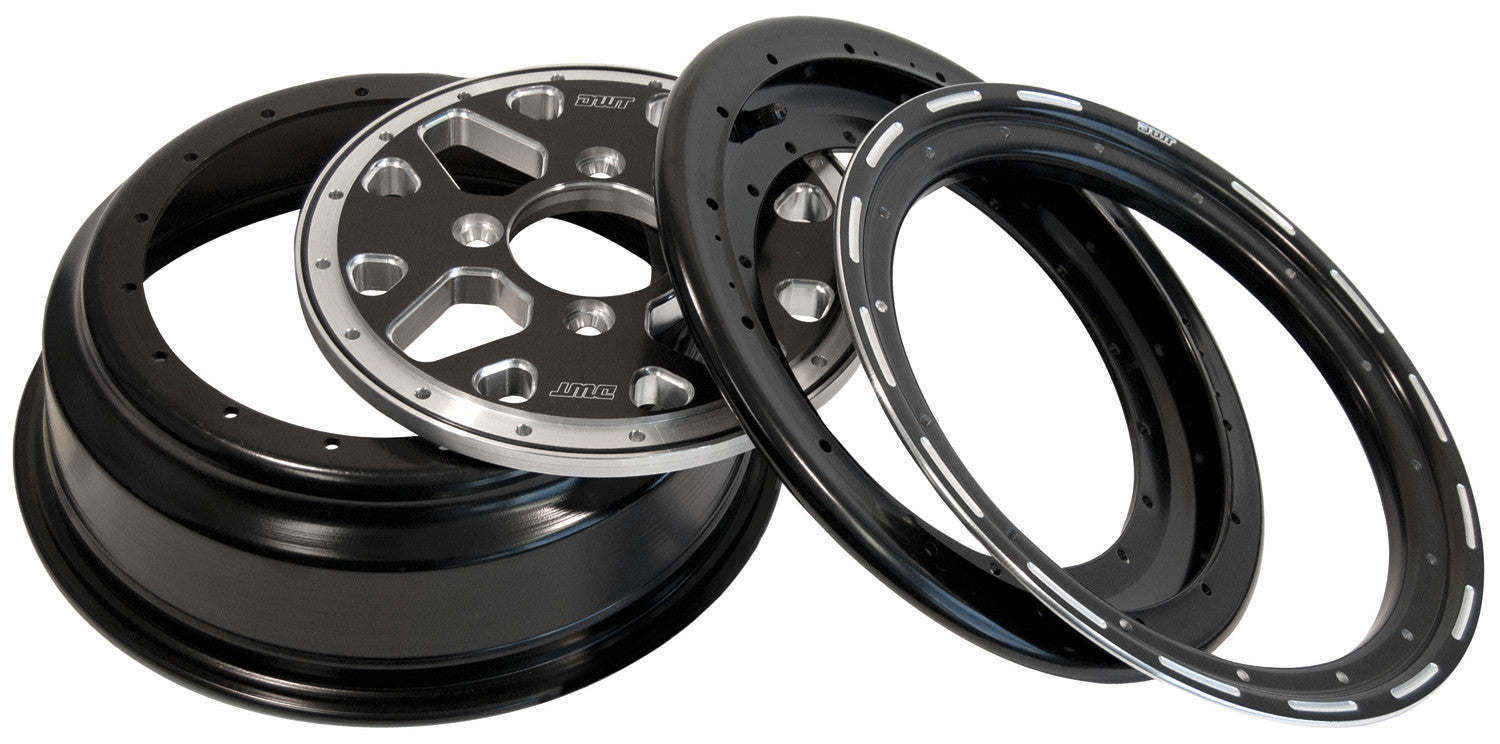

Introducing the unique new SECTOR 3 piece wheel from DWT. Made in the USA, this awesome new TRUE 3 piece wheel is fully serviceable and constructed of super strong lightweight heat treated 6061 .190 aluminum. All of our heat treatment is done in our factory, assuring a true and proper procedure. The Sector consists of two lightweight aluminum wheel halves which bolt to a stylish billet center. An air tight seal is formed by a strong rubber ring seated in a precision machined groove between each wheel half and the wheel center. Available in 12” and 14” sizes in many offsets.
15x7 comes with an offset of 3.5+3.25
15x8 beadlock wheel comes with an offset of 4.5+3.25
15x8 rolled lip wheel comes with an offset of 4.5+3.5
15x11 beadlock wheel comes with an offset of 5.5+5.5
15x11 rolled lip wheel comes with an offset of 5.5+5.25
• Fully Serviceable True 3 Piece Wheel
• Super Strong Lightweight Heat Treated 6061 .190 Aluminum
• 8mm Bead Lock Bolts – NEW
• 12”,14” & 15″ sizes available
• Easy Tire Mounting

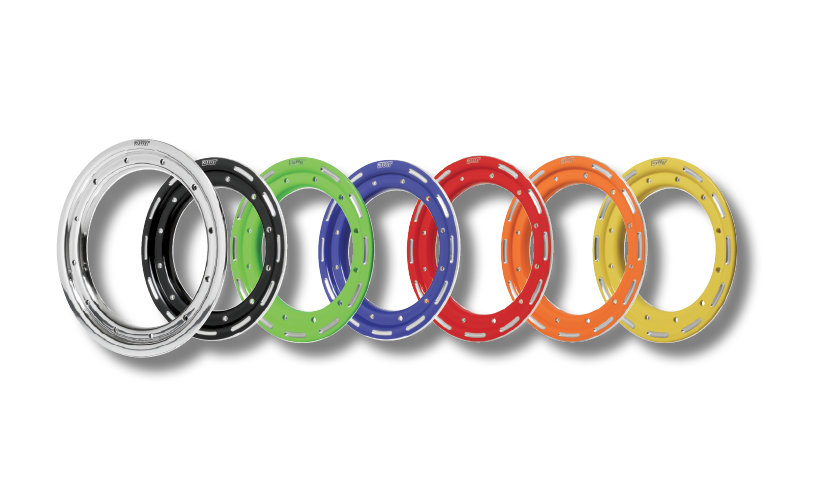

• Beadlock or Rolled Lip (Beadlock version available with colored rings)
• Made in the U.S.A.
REVOLUTIONARY 3 PIECE WHEEL
Sector’s revolutionary 3 piece design allows you to change any piece of the wheel if need be. This versatile design has many options which allow you to have one wheel for different types of riding, vehicle applications or simply to replace a damaged part without scrapping the entire wheel.

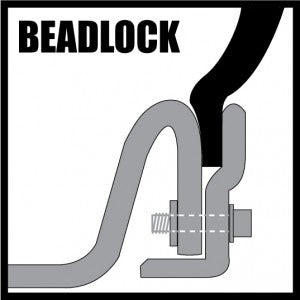

It also allows easy “in the field” tire mounting. These amazing new wheels are available in DWT’s signature “super hoop strength” Rolled Lip and Bead-Lock models. Our bead-lock models employ our exclusive riveted steel nut plate system which allows for quick and easy thread fix.
Did you ever wish you could change your wheel’s offset, bolt pattern or maybe even make it into a beadlock wheel? Well, with DWT’s SECTOR WHEEL you can make it happen.
The versatile SECTOR wheel from DWT can become many different wheel configurations by swapping out any part of the wheel. Now you can get that specific wheel you need without buying a whole new setup!
BEADLOCK TORQUE SPECS:
8”-12” wheels = 5.5-7.5 FOOT lbs/65-90 INCH lbs
15”-17” wheels = 15-25 FOOT lbs/180-300 INCH lbs
DOWNLOAD the SECTOR INSTRUCTION SHEET HERE
Check out this VIDEO and POST from MUDANDGUTSOFFROAD.org
