Kawasaki Mule Pro High Clearance 1.5" Offset A-Arms by SuperATV

SuperATV

  • $ 459.95


Free Shipping in the Lower 48 States

Part #: AA-K-MULE-FXT-1.5-HC-02

Fit 30” Tires

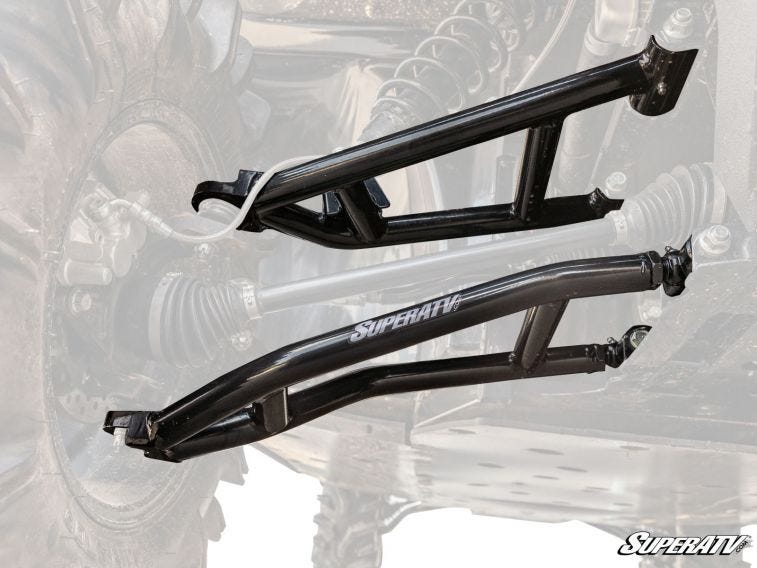

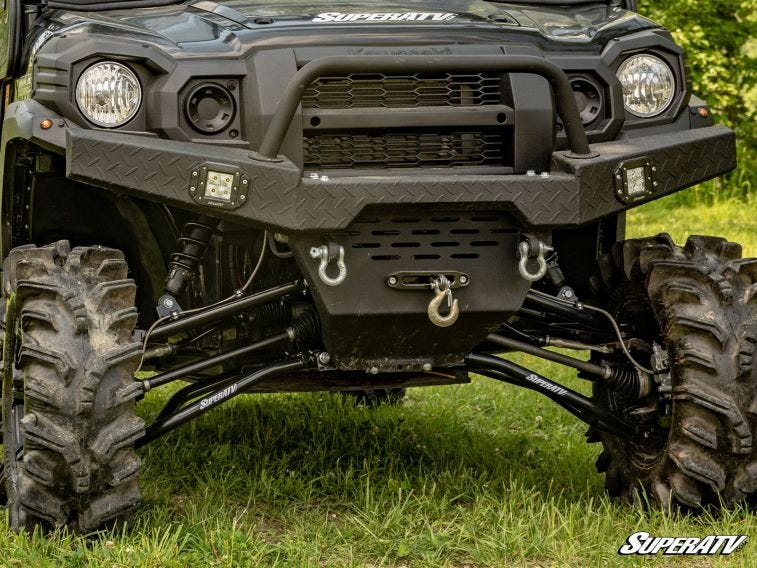

With a set of SuperATV 1.5” Forward Offset A-Arms installed on your Kawasaki Mule Pro, you’ll have room for up to 30” tires when paired with rear offset A-arms and up to 33" tires with SuperATV's 2" lift kit. Our high-clearance A-arms are made with heavy-duty 1.25” diameter steel tubing. The arched high-clearance design gives you 1.5” of extra ground clearance over stock and the 1.5” forward offset gives you a longer wheelbase for increased stability, better hill climbs, and better performance overall.

We complete the package by shipping them with UHMW bushings installed and including a heavy-duty Z-bend tie rod kit. It makes your suspension unstoppable.

Preadjusted for Fast Install
Our High-Clearance A-arms for the Mule feature industry-leading Adjustable Chromoly Pivot Blocks so you can get the camber you want. Out of the box, your order comes preadjusted to factory specs and ready to install. However, unlike others, SuperATV Arms allow you to adjust your alignment, so you can maintain perfect camber and eliminate premature wear that can come from the addition of a lift kit or larger tires.

Chromoly Makes it Stronger
With chromoly steel adjustable pivot blocks and ball joint housings, this A-arm’s most important anchor points are bulletproof. We wanted to make sure these control arms could take you through every trail, every rock garden, and every rider mistake. We don’t mess around, and neither should you.

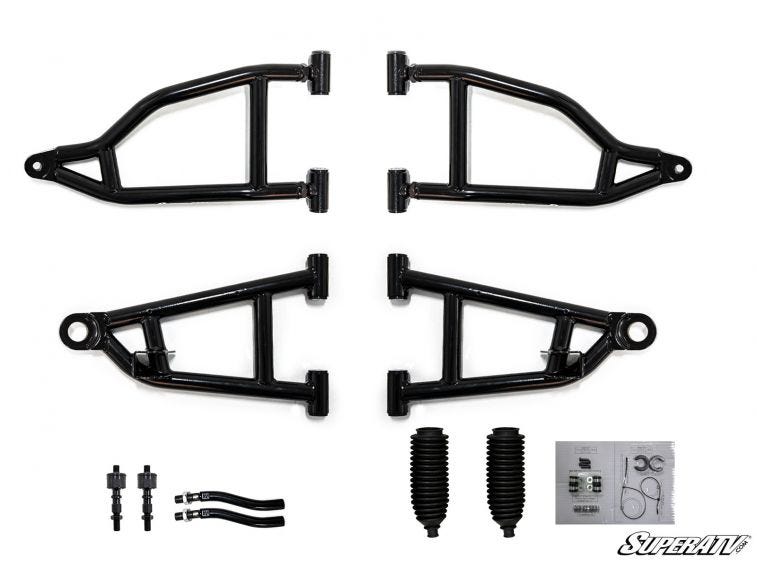

Comes with UHMW Bushings and Z-bend Tie Rods
This A-arms kit comes complete with all new UHMW bushings preinstalled and a heavy-duty Z-bend tie rod kit with inner tie rod ends and boots. It’s the complete package and the complete upgrade to make your Mule Pro a monster. UHMW bushings wear less so you can ride more, and our heavy-duty tie rod kit makes sure you’re in control riding through miles of rough terrain. This kit is Built for Battle.

Setup W/ 1.5" Forward Offset A-Arms Max Tire Size
1.5" Forward Offset A-Arms only 28"
1.5" forward offset and 1.5" Rear Offset A-Arms 30"
Front and Rear Offset w/ OE Bumper 29"
Front and Rear Offset w/ SATV Bumper 26"
Front and Rear Offset w/ 2" Lift 33"
Front and Rear Offset w/ 2" Lift and OE bumper 33"
Front and Rear Offset w/ 2" Lift and SATV Bumper 30"

FITMENT

  • Kawasaki Mule Pro DX : 2016+
  • Kawasaki Mule Pro DXT : 2016+
  • Kawasaki Mule Pro FX : 2016+
  • Kawasaki Mule Pro FXT : 2015+
  • Kawasaki Mule Pro FXR : 2018+

FEATURES

  • 1.5” forward offset
  • Fit up to a 30” tire when paired with rear offset a-arms (up from 26” stock)
  • Fit up to a 33" tire with a 2" Lift Kit
  • 1.25” diameter steel tubing
  • 1.5” of extra ground clearance w/ no lift
  • Chromoly steel pivot blocks and ball joint housings
  • Preadjusted pivot blocks for easy install
  • Includes all new bushings and sleeves
  • Includes new tie rod kit and tie rod boots
  • UV-resistant powder coat finish
  • Backed by a lifetime warranty!
Note: 1” wheel spacer required if running stock wheels
