SuperATV Can-Am Defender HD10 Ready-Fit Winch
QWM-CA-DEF20-4500#ADThe Easiest Way to Install Your Defender HD10 Winch
Deep mud, rough trails, and tough recoveries come with the territory. SuperATV’s Can-Am Defender HD10 Ready-Fit Winch makes it simple with a pre-mounted, pre-wired setup right out of the box. Add a 4500 or 6000 lb. Black Ops Winch and be ready to pull yourself free whenever you need it.
Installation is Quick and Easy

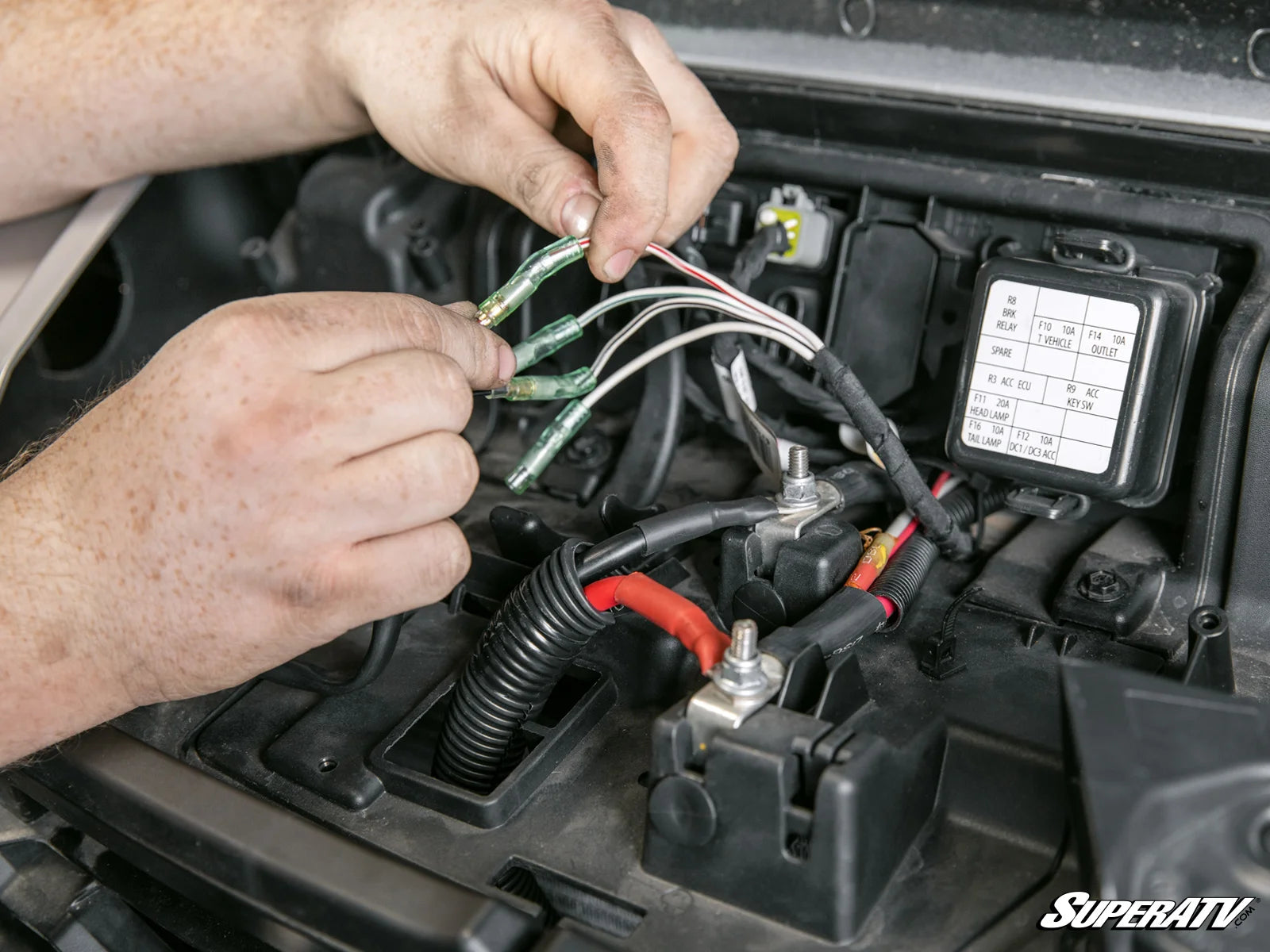

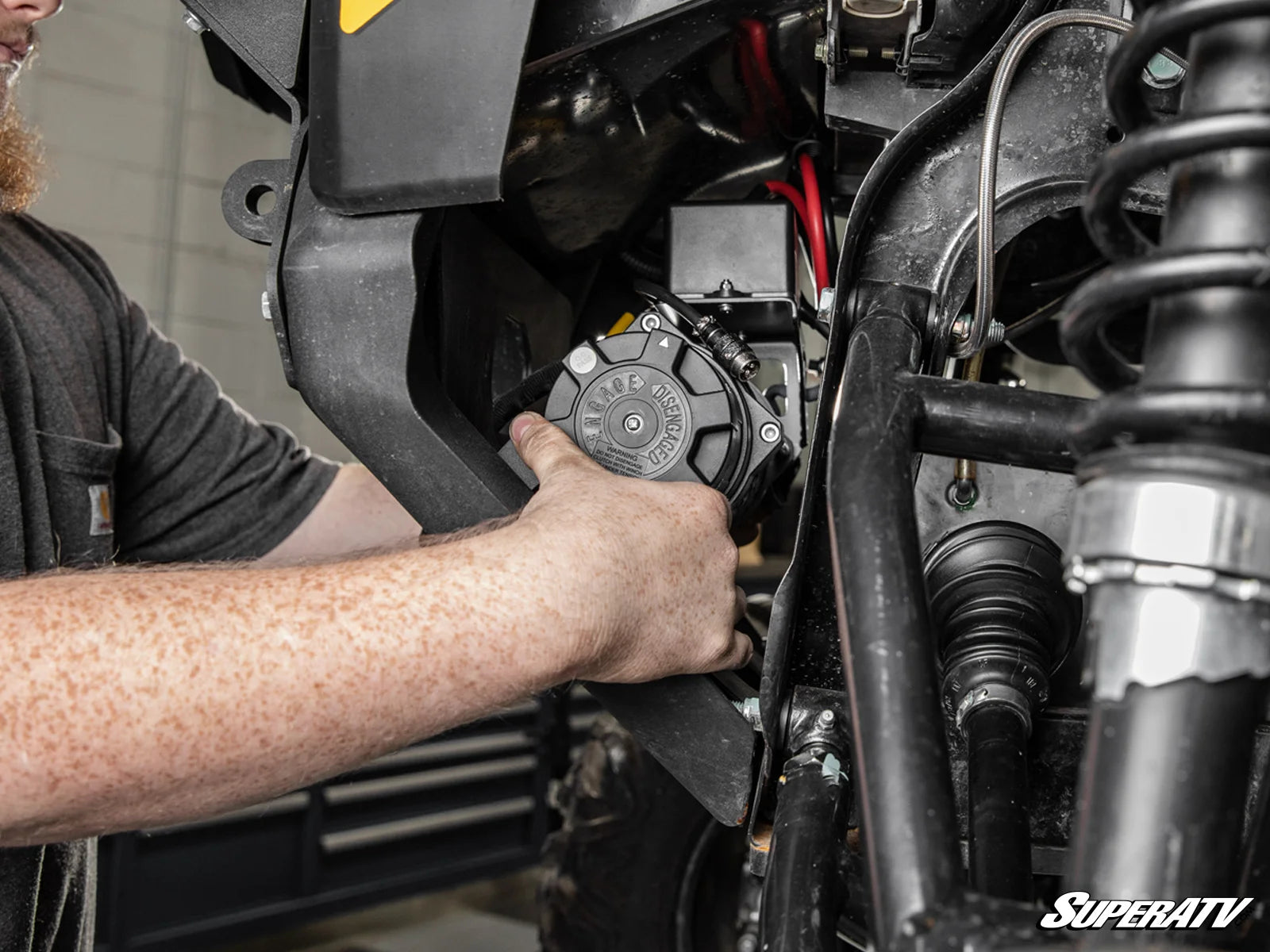

The HD10 quick-install winch keeps things simple from the start. It comes pre-mounted and pre-wired on a custom bracket, so you’re just finishing the job. Install the hardware, plug in the harness, and connect power under the hood—then you’re good to go.

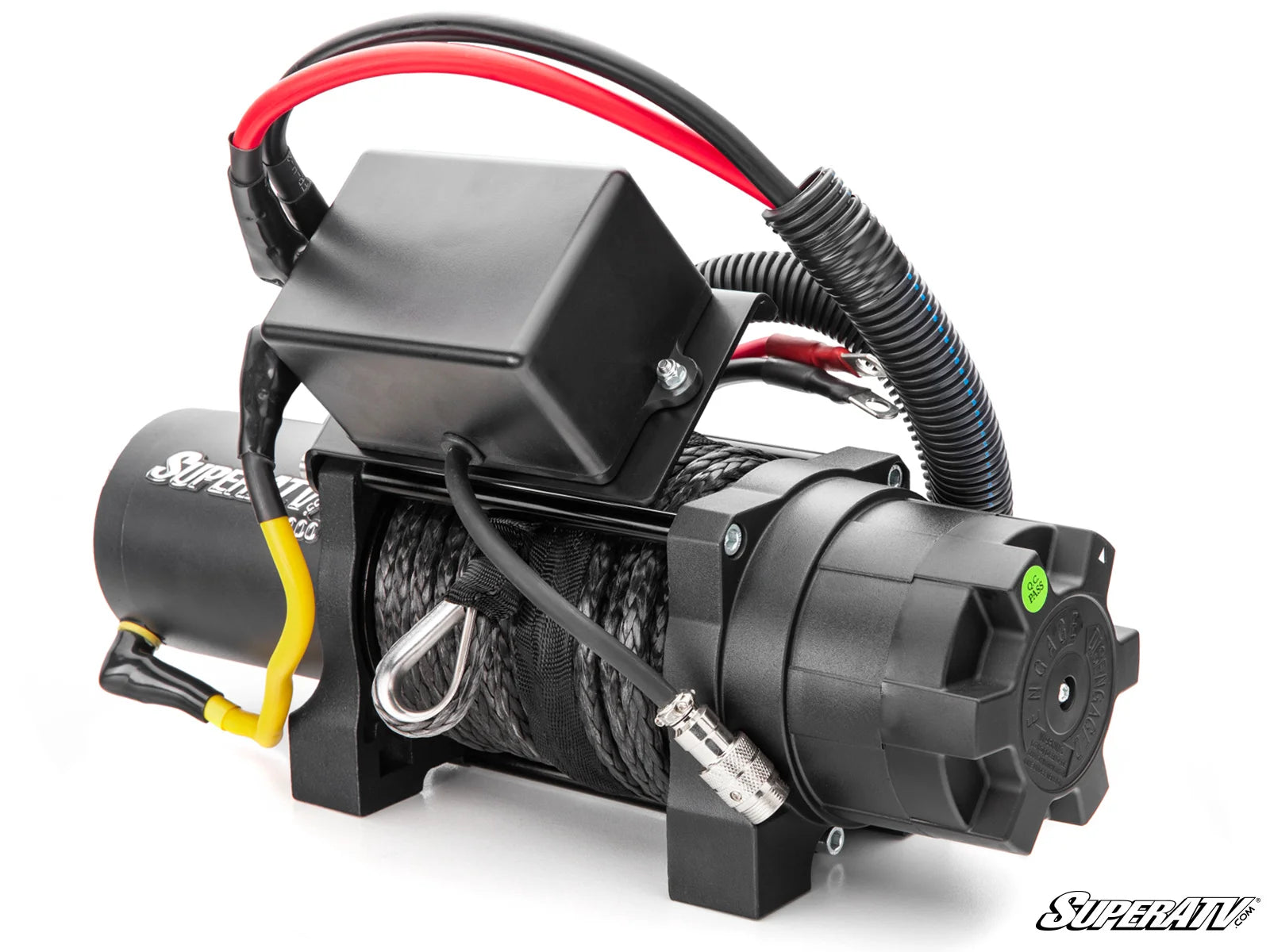

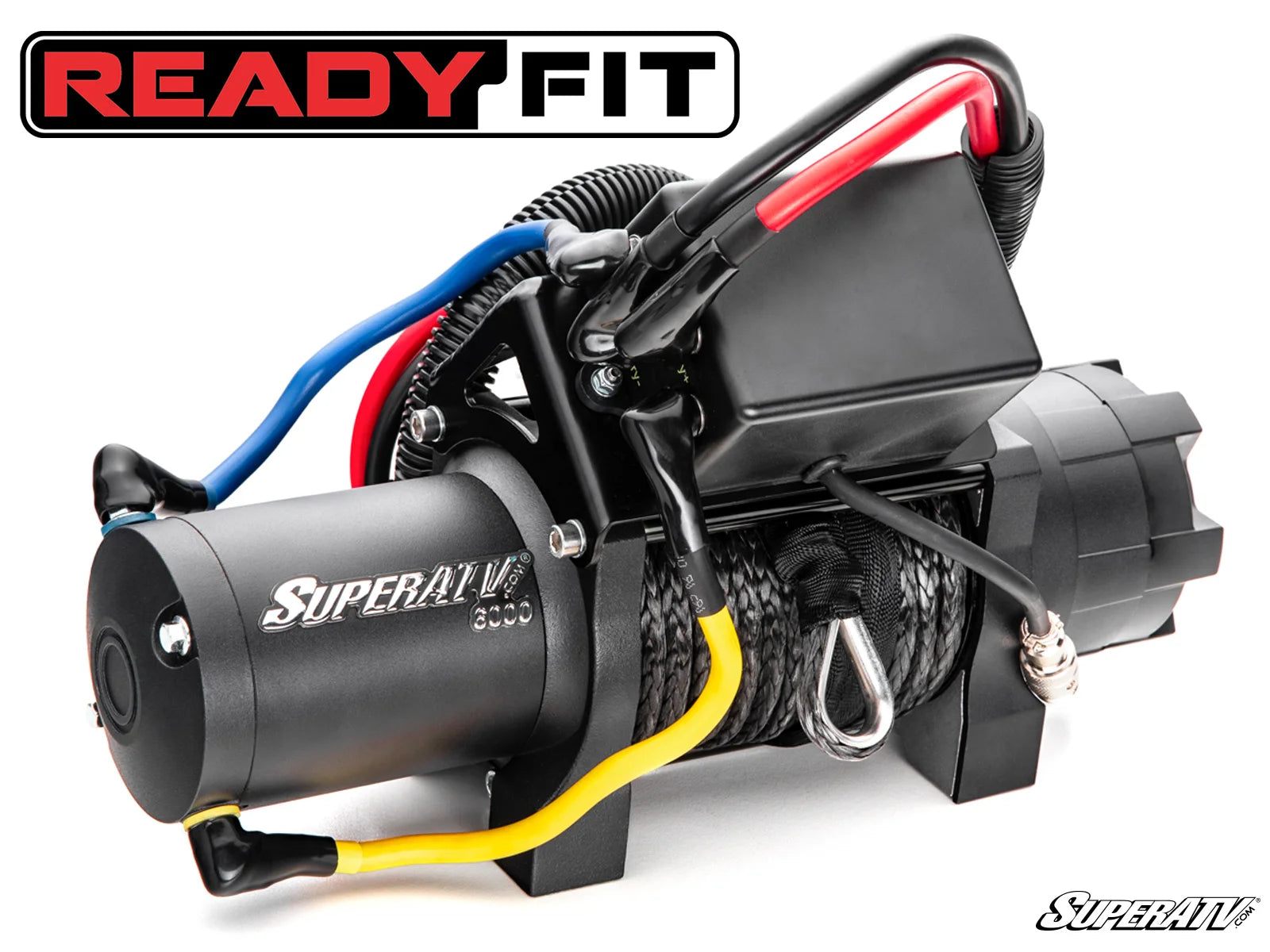

Black Ops Winch
Choose a 4500 or 6000 lb. Black Ops Winch and you’re set for tough recoveries. It’s protected in a water-resistant case to handle messy conditions without issue. With a wireless remote and 50-foot synthetic rope, you get simple, reliable control every time you winch.

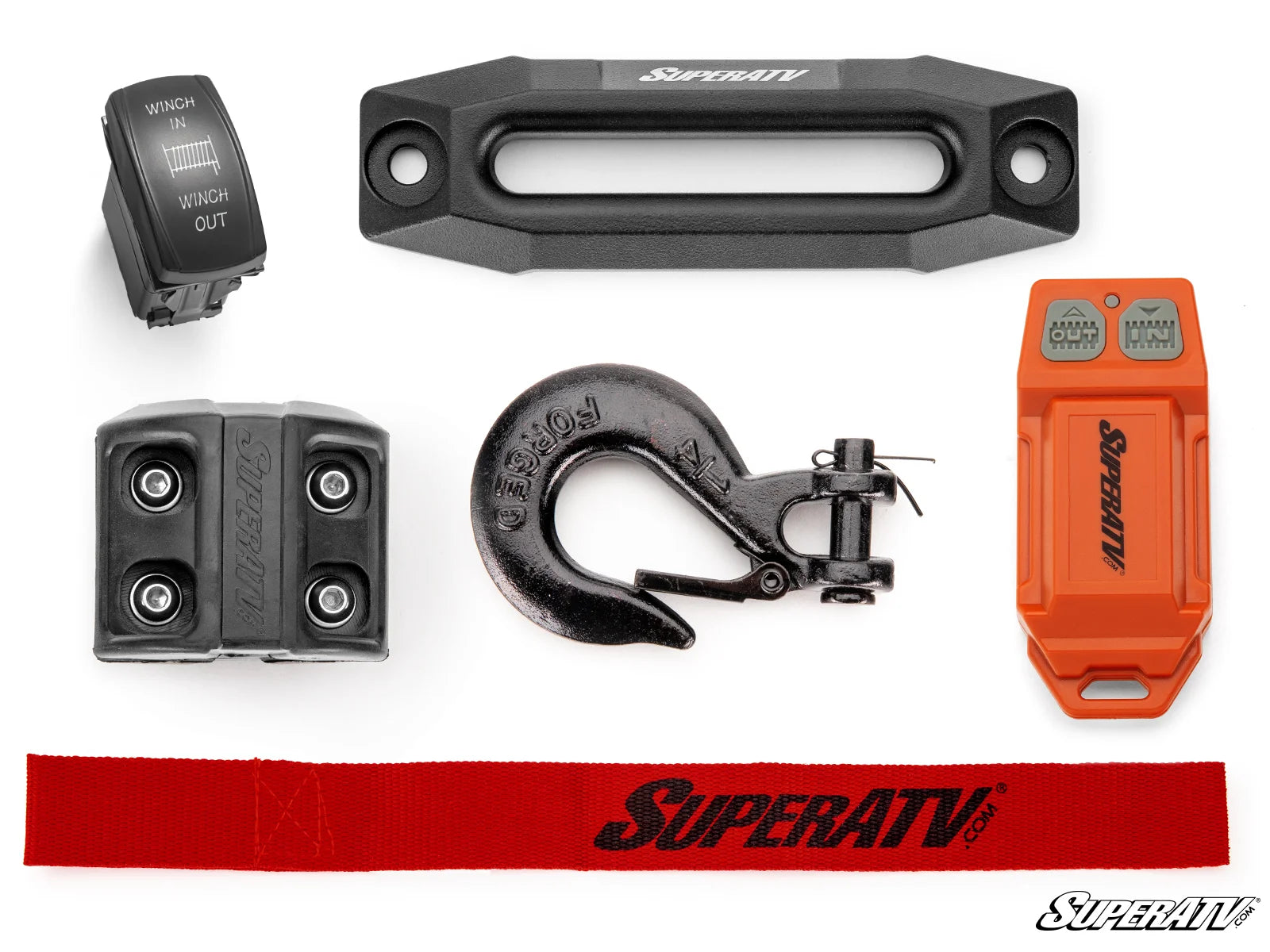

Comes with Everything You Need
This HD10 quick-mount winch is a complete kit designed to get you back on the trail fast. It comes with a pull strap, Clevis hook, and stopper for reliable recovery. You’ll also have wired and wireless remotes, giving you flexible control when it matters most.
Synthetic Winch Rope
Steel cable has its drawbacks, but synthetic rope keeps things simple. It’s lighter, safer to handle, and resistant to the elements, making recovery easier all around. And with serious pulling strength, it’s ready to help you out of even the toughest situations.
| Kit Includes: |
|---|
| Fully assembled and mounted 6000 lb. or 4500 lb. Black Ops Winch |
| 50' synthetic rope |
| Wireless remote with water-resistant receiver |
| Wired dash rocker switch |

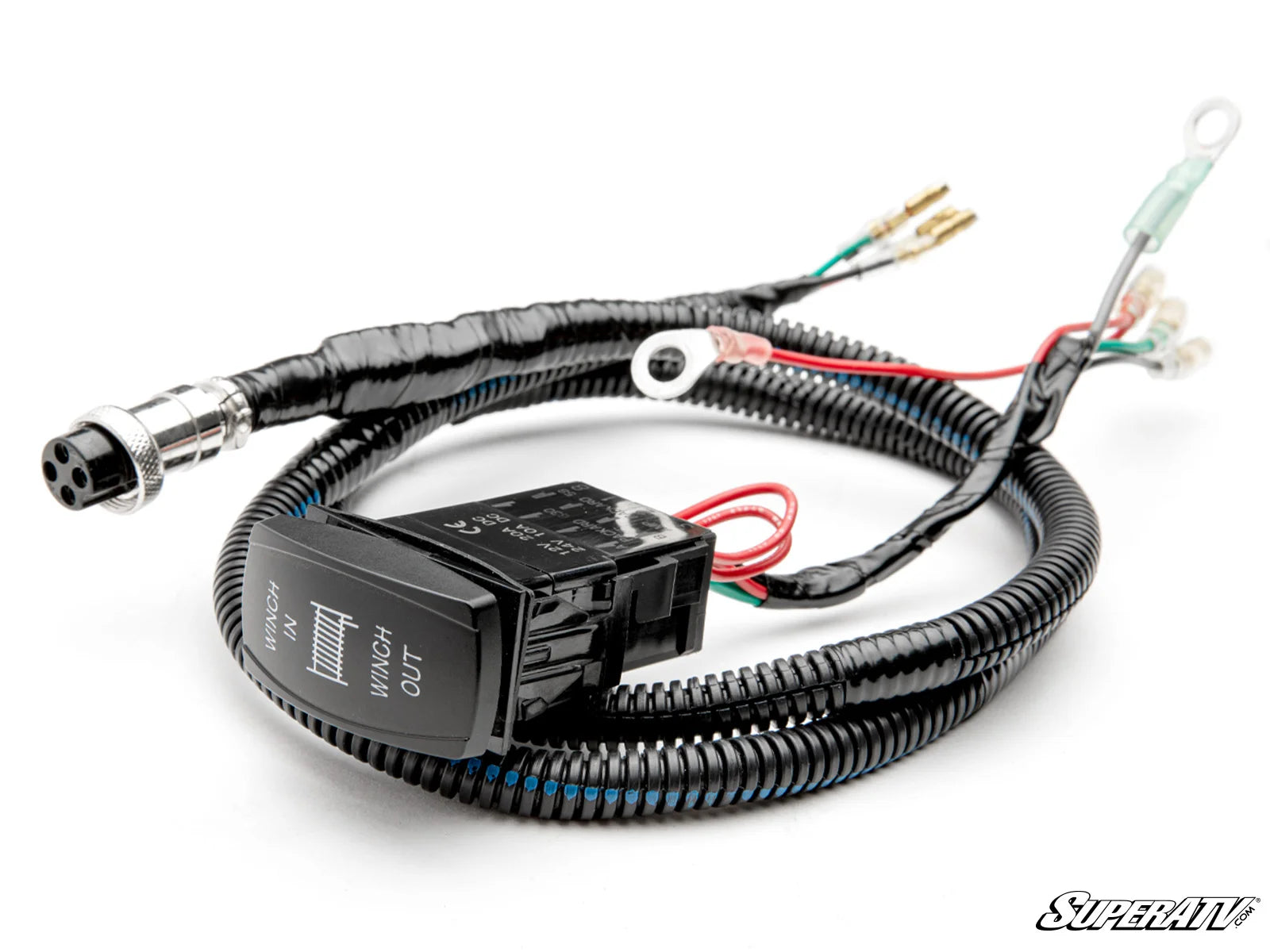

| Heavy-gauge extended wiring and waterproof solenoid (long enough for four-seaters) |
| Aluminum hawse fairlead—6.0" (152.4 mm) |
| Winch hook kit |
| Hook pull strap |
| Rope stopper |
| All hardware and access to instructions |
- Mount made with heavy-duty 3/16” steel
- Preassembled and wired
- Waterproof seals and solenoid
- Remote range: 50'
- 266:1 gear ratio (6000 lb.), 166:1 gear ratio (4500 lb.)
- Permanent magnet DC 12V, 1.9 HP motor (6000 lb.), 1.3 HP motor (4500 lb.)
- Plug-and-play installation
Fitment:
- Can-Am Defender HD 10 : 2020+
- Can-Am Defender HD 10 6x6 : 2020+
- Can-Am Defender HD 10 DPS : 2020+
- Can-Am Defender HD 10 Mossy Oak : 2020+
- Can-Am Defender HD 10 Pro : 2020+
- Can-Am Defender HD 10 XT : 2020+
- Can-Am Defender HD 10 XTP : 2020+
- Can-Am Defender MAX HD 10 DPS : 2020+
- Can-Am Defender MAX HD 10 XT : 2020+
